Individual hose record
4368038 Hose Repair Specifications
Excavator · Hitachi · EX80-5 · Attachments
Finished length1,350 mm
Locate this hose

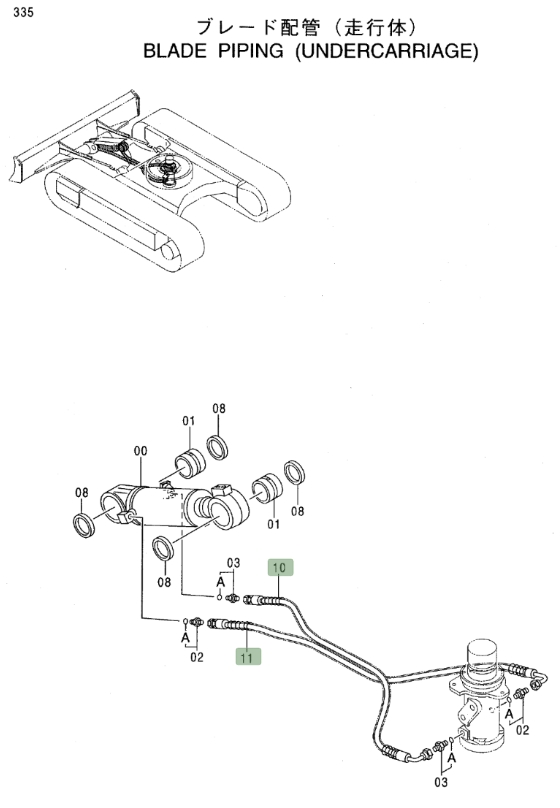

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4368038 before removing the hose.
Repair specifications
- Part number
- 4368038
- Diagram pipe number
- 11
- Installation route
- 回转接头~推土铲油缸
- Hose specification
- DN10;4SH-06;44.5MPa
- Finished length
- 1,350 mm
- Working pressure
- 44.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
