Individual hose record

730501005132 Hose Repair Specifications

Excavator · Sunward · SWE365F · Attachments – Other Kits

Finished length500 mm

Locate this hose

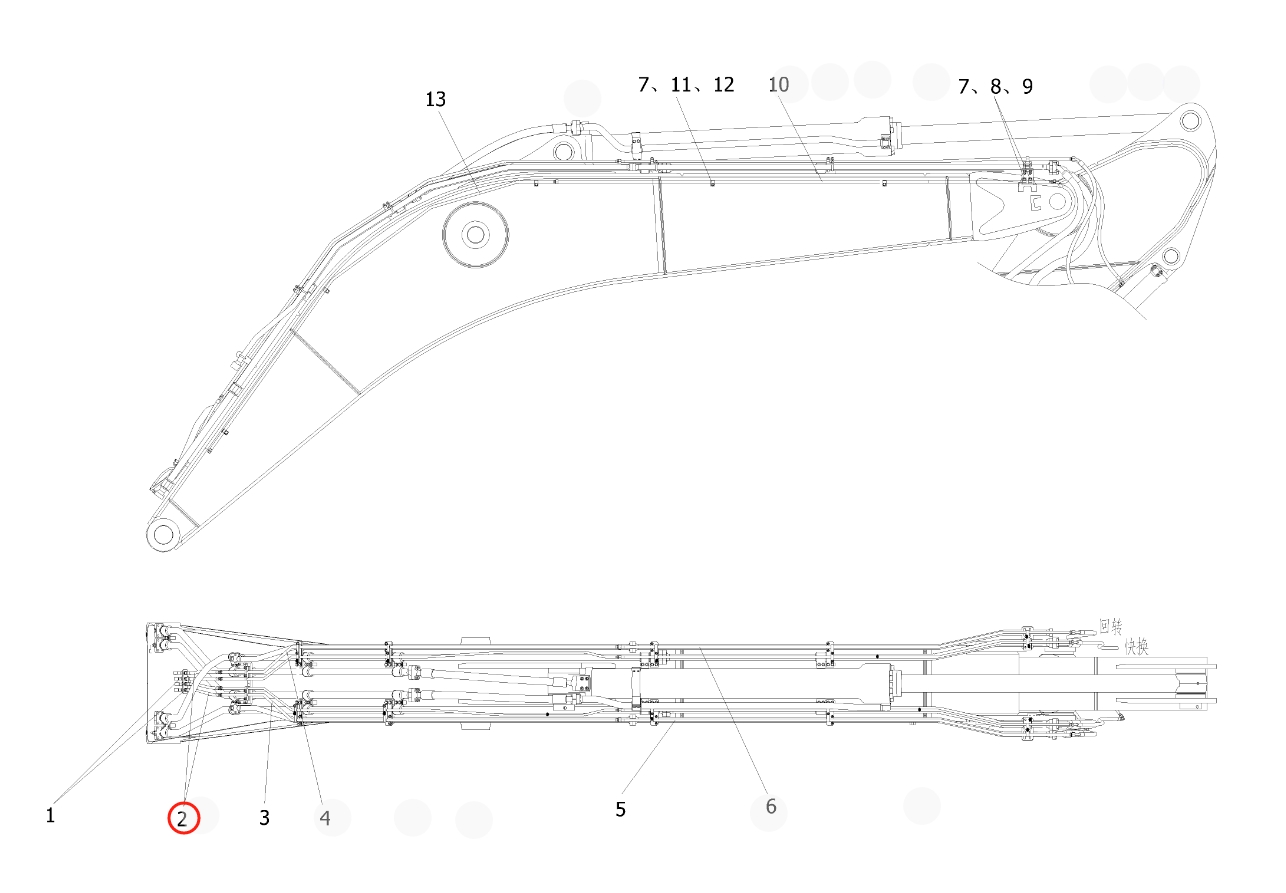

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 730501005132 before removing the hose.

Sunward SWE365F installation diagram showing hydraulic hose 730501005132 at Pipe No. 2 — **Sunward SWE365F**Part 730501005132 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 730501005132
Diagram pipe number: 2
Installation route: 大臂(回转)~接线板(大臂下)
Hose specification: DN12;3SN-08;41.5MPa
Finished length: 500 mm
Working pressure: 41.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 12

730502000433

Installation route: 电磁阀A2(5联阀)~控制阀(回转)

Length: 1,660 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 6

730501000539

Installation route: 接线板T3(液压油箱)~

Length: 700 mm
Specification: DN16;1SN-10;13.8MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 13

73050200A374

Installation route: 液控制阀(回转)T~接线板(液压油箱)

Length: 1,810 mm
Specification: DN10;1SN-06;20.7MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 45°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 3

730502002852

Installation route: 分配阀右DR2~电磁阀(回转马达)

Length: 890 mm
Specification: DN10;1SN-06;20.7MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 17

730502009705

Installation route: 大臂(回转)~接线板(回转马达)

Length: 1,350 mm
Specification: DN12;3SN-08;41.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 2

730503001836

Installation route: 大臂(回转)~接线板(大臂下)

Length: 570 mm
Specification: DN10;3SN-06;44.5MPa
Left fitting: 45°公制内螺纹24°锥带O形圈-轻型
Right fitting: 45°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 16

730501004419

Installation route: 液压油箱~电磁阀(蓄能器)

Length: 550 mm
Specification: DN10;1SN-06;20.7MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 1

73050200A132

Installation route: 电磁阀(回转马达)~接线板(大臂下)

Length: 1,350 mm
Specification: DN10;3SN-06;44.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
