Individual hose record
4460821 Hose Repair Specifications
Excavator · Hitachi · ZX225USLC · Attachments
Finished length860 mm
Locate this hose

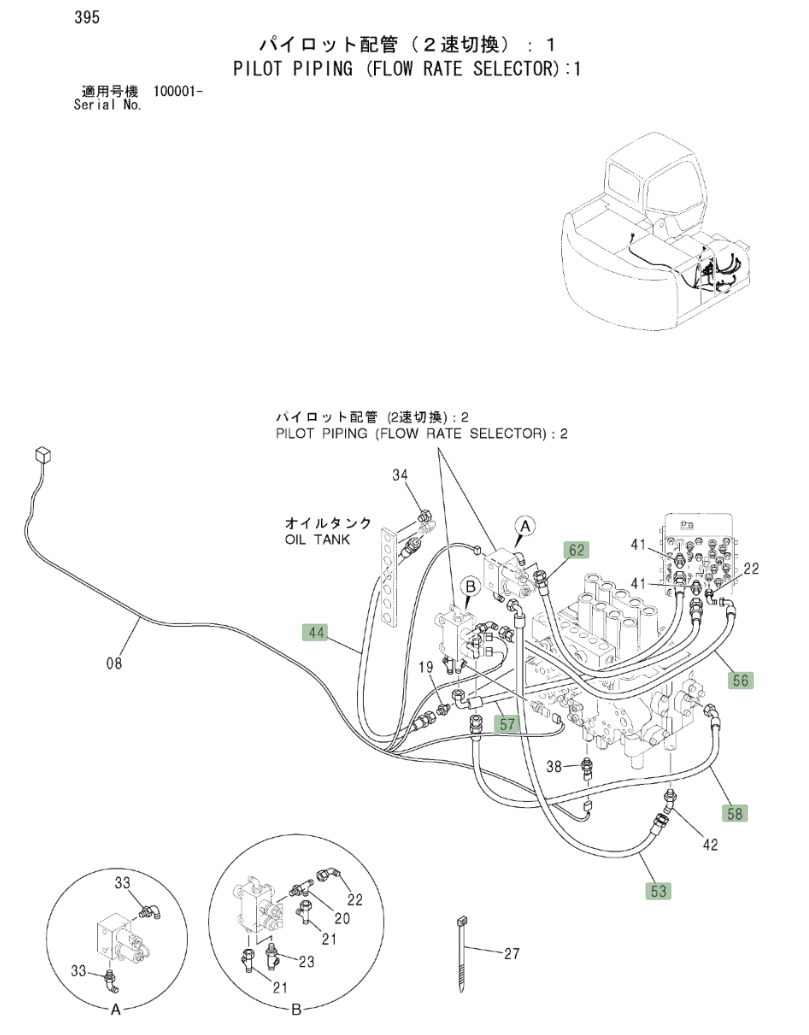

Installation diagram — Pipe No. 44
Locate Pipe No. 44 in the diagram, then confirm part number 4460821 before removing the hose.
Repair specifications
- Part number
- 4460821
- Diagram pipe number
- 44
- Installation route
- 液压油箱~流速切换阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 860 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
