Individual hose record

4716739 Hose Repair Specifications

Excavator · Hitachi · ZX245USLC-6N · Attachments

Finished length1,400 mm

Locate this hose

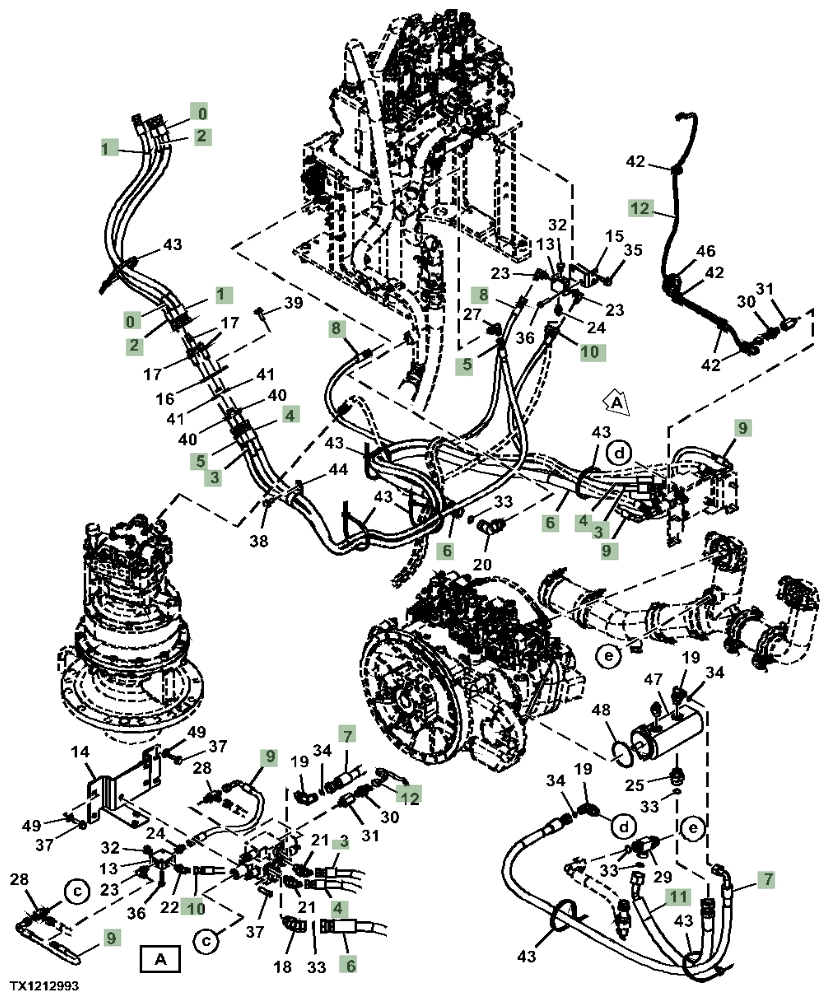

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4716739 before removing the hose.

Hitachi ZX245USLC-6N installation diagram showing hydraulic hose 4716739 at Pipe No. 8 — Hitachi ZX245USLC-6NPart 4716739 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4716739
Diagram pipe number: 8
Installation route: 过渡阀块(辅助)~
Hose specification: DN10;1SN-6;7Mpa
Finished length: 1,400 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 19

4656809

Installation route: 流速切换阀~过渡阀块(流速切换)

Length: 410 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 18

4437902

Installation route: 电磁阀~流速切换阀

Length: 1,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 10

4679153

Installation route: 控制阀(辅助)~过渡阀块(辅助)

Length: 1,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 5

4677294

Installation route: 回油铁管(液压油箱)~接线板(辅助)

Length: 2,000 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 19

4656809

Installation route: 电磁阀(液压泵)~过渡阀块(流速切换)

Length: 410 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
