Individual hose record

4345675 Hose Repair Specifications

Excavator · Hitachi · ZX450LC · Boom Assembly

Finished length900 mm

Locate this hose

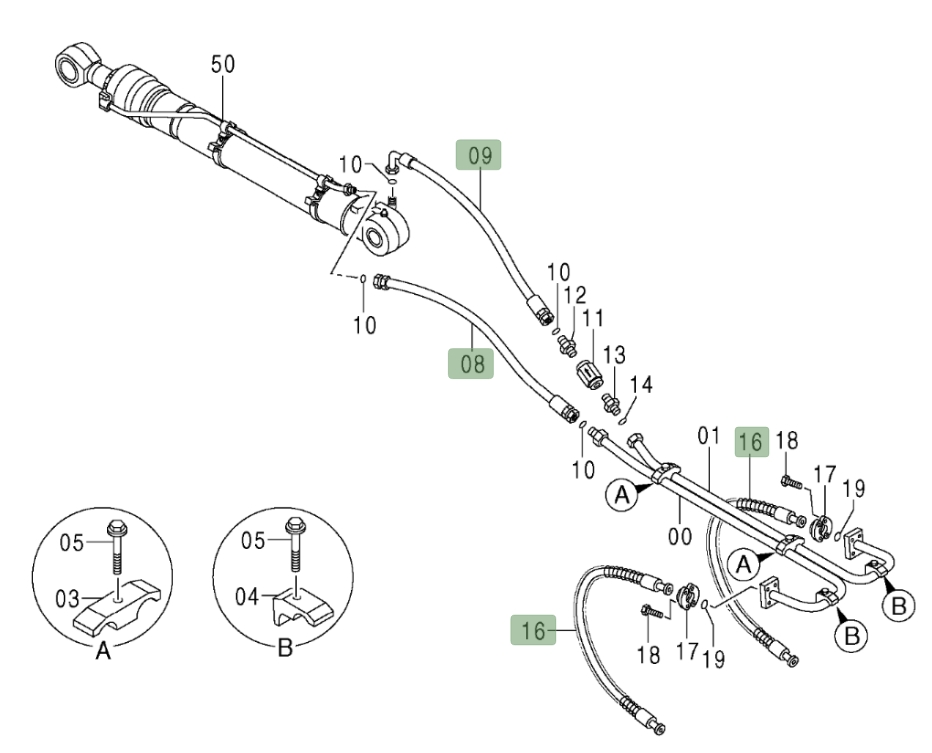

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4345675 before removing the hose.

Part number: 4345675
Diagram pipe number: 8
Installation route: 铲斗油缸左
Hose specification: DN25;4SH-16;38.8MPa
Finished length: 900 mm
Working pressure: 38.8 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 102

Installation route: 大臂左3/左4/左5/左6

Length: 2,550 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 102

Installation route: 大臂左2

Length: 2,550 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
