Individual hose record
4122891 Hose Repair Specifications
Excavator · Hitachi · ZX850LC-3 · Grease Lines
Finished length850 mm
Locate this hose

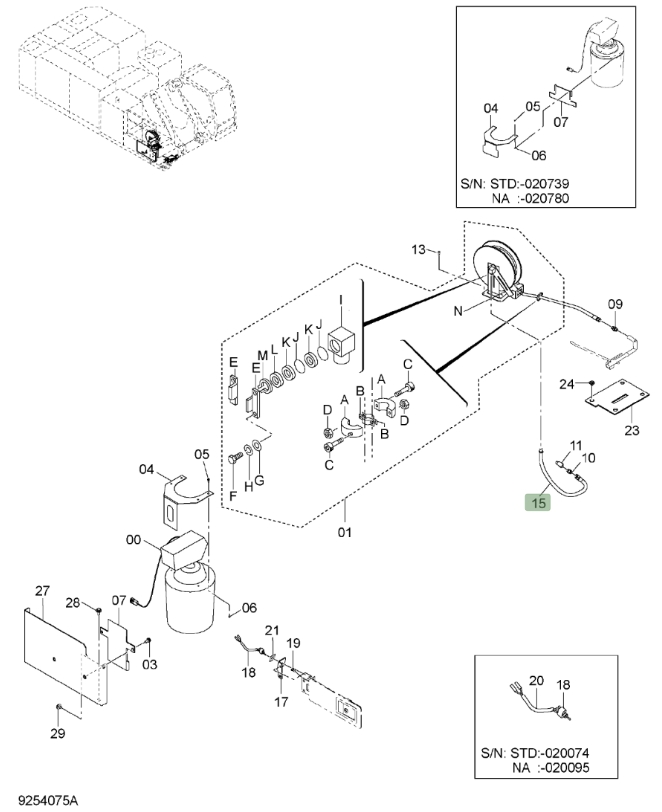

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 4122891 before removing the hose.
Repair specifications
- Part number
- 4122891
- Diagram pipe number
- 15
- Installation route
- 黄油泵~黄油软管卷盘
- Hose specification
- DN10;2SN-6;20.5MPa
- Finished length
- 850 mm
- Working pressure
- 20.5 MPa
- Left fitting
- 英制锥形外螺纹30°内锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
