Individual hose record
150963A1 Hose Repair Specifications
Excavator · Case · CX130B · Swivel Joint
Finished length1,650 mm
Locate this hose

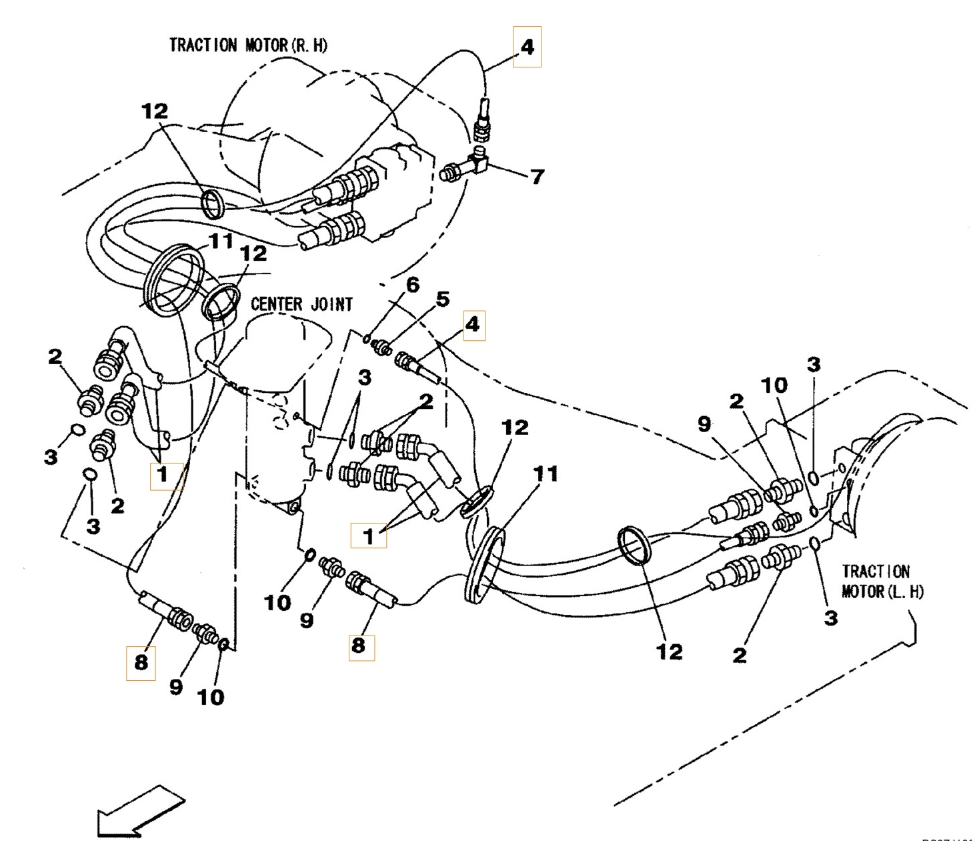

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 150963A1 before removing the hose.
Repair specifications
- Part number
- 150963A1
- Diagram pipe number
- 8
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 1,650 mm
- Working pressure
- 16 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 2
