Individual hose record
4382551 Hose Repair Specifications
Excavator · Hitachi · EX230LC-5 · Attachments
Finished length380 mm
Locate this hose

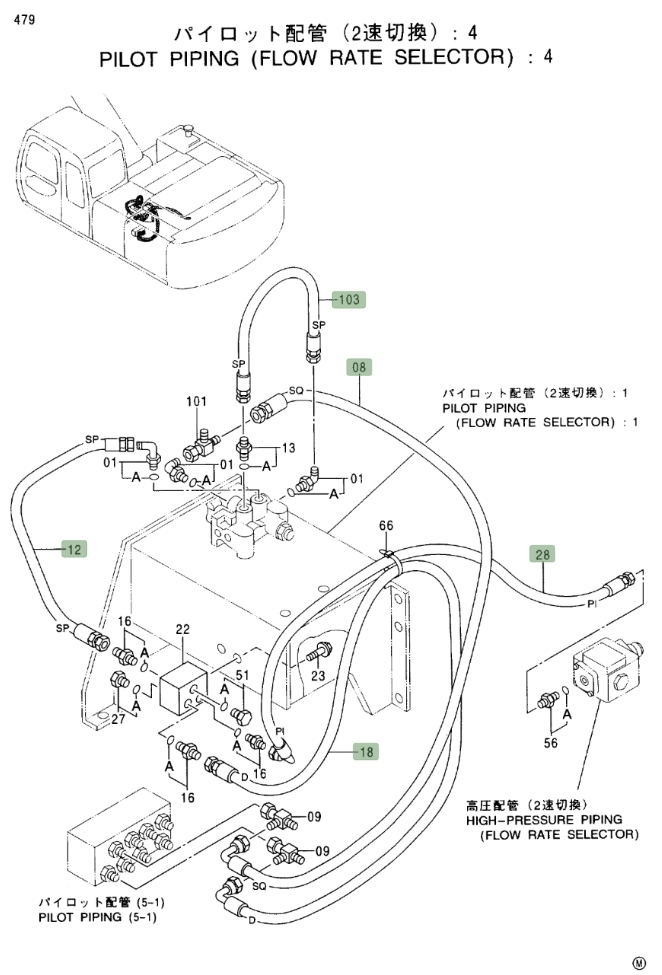

Installation diagram — Pipe No. 103
Locate Pipe No. 103 in the diagram, then confirm part number 4382551 before removing the hose.
Repair specifications
- Part number
- 4382551
- Diagram pipe number
- 103
- Installation route
- 流速切换阀上~流速切换阀右
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 380 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
