Individual hose record

4208435 Hose Repair Specifications

Excavator · Hitachi · EX100WD · Attachments – Breaker

Finished length2,200 mm

Locate this hose

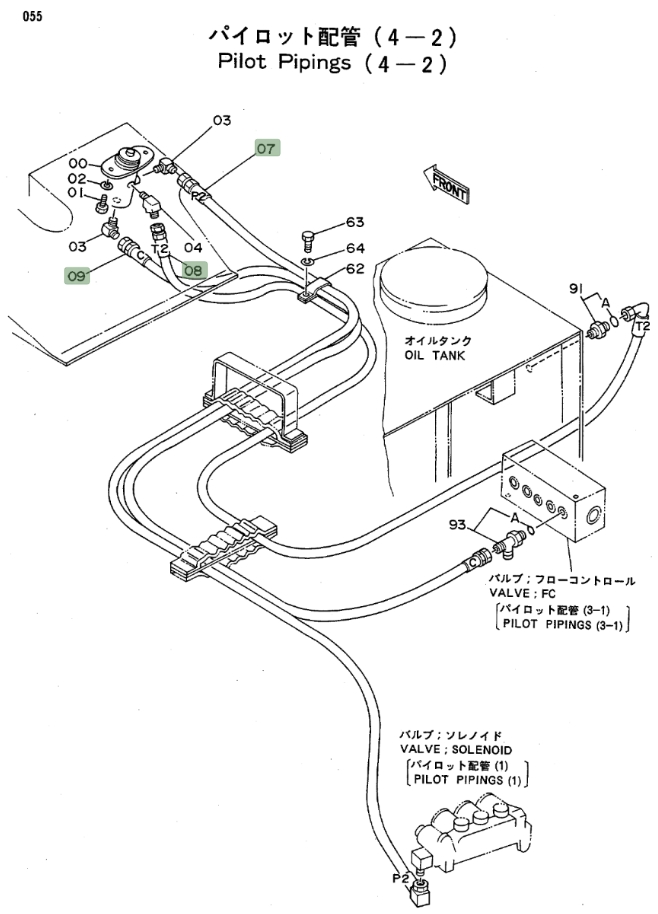

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4208435 before removing the hose.

Hitachi EX100WD installation diagram showing hydraulic hose 4208435 at Pipe No. 9 — Hitachi EX100WDPart 4208435 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 4208435
Diagram pipe number: 9
Installation route: 破碎器踏板~中转接头
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 2,200 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 21

4208439

Installation route: 进回油阀~控制阀(破碎器)

Length: 1,200 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 19

4208437

Installation route: 控制阀(破碎器)~接线板(中转接头)

Length: 1,650 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4208434

Installation route: 破碎器踏板~液压油箱

Length: 2,700 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18

4208436

Installation route: 中转接头~控制阀(破碎器)

Length: 1,700 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 21

4187392

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,600 mm
Specification: DN19;4SP-12;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 20

4208438

Installation route: 控制阀(破碎器)~接线板(中转接头)

Length: 1,700 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
