Individual hose record
4208489 Hose Repair Specifications
Excavator · Hitachi · EX270LC · Control Lever
Finished length870 mm
Locate this hose

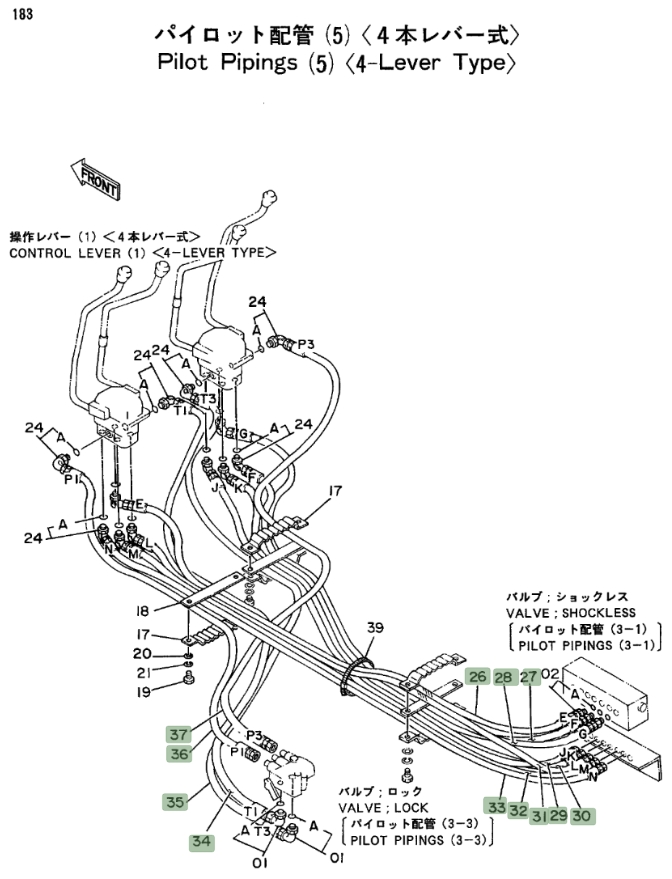

Installation diagram — Pipe No. 36
Locate Pipe No. 36 in the diagram, then confirm part number 4208489 before removing the hose.
Repair specifications
- Part number
- 4208489
- Diagram pipe number
- 36
- Installation route
- 左手柄~进回油阀
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 870 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
