Individual hose record
4374426 Hose Repair Specifications
Excavator · Hitachi · ZX270LC · Grease Lines
Finished length2,980 mm
Locate this hose

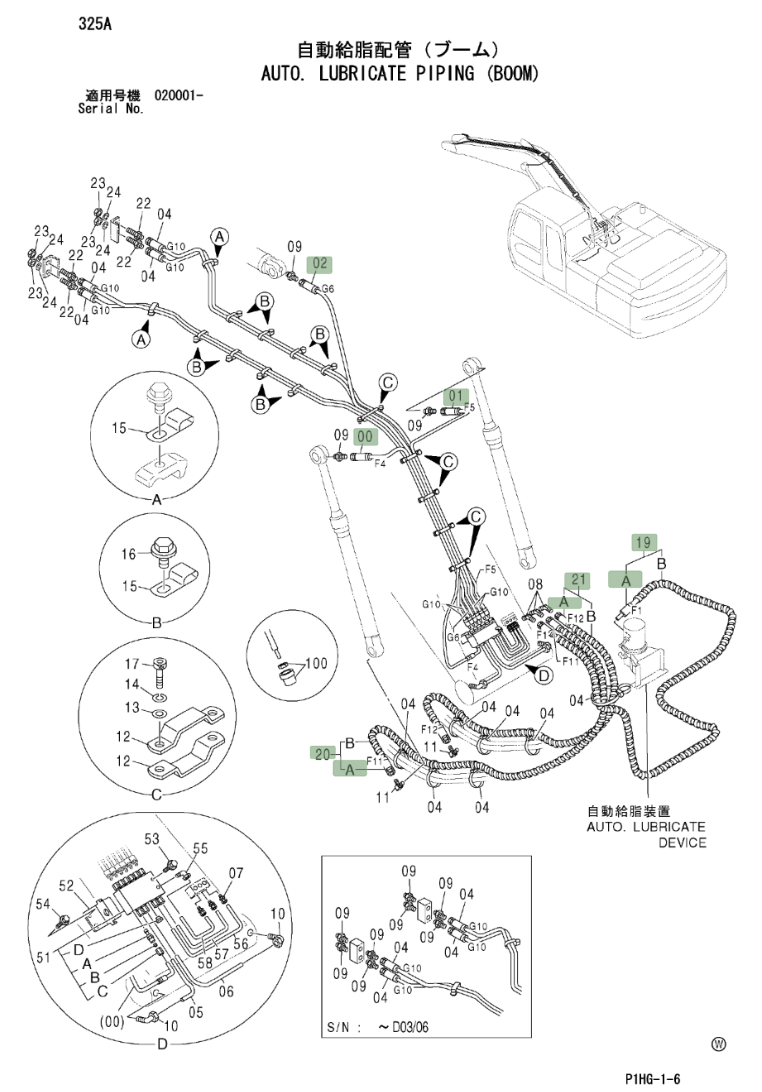

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4374426 before removing the hose.
Repair specifications
- Part number
- 4374426
- Diagram pipe number
- 1
- Installation route
- 大臂油缸黄油管
- Hose specification
- DN5;2层纤维-3;14MPa
- Finished length
- 2,980 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 公制卡套式
- Quantity
- 1
