Individual hose record

KSJ2683 Hose Repair Specifications

Excavator · Case · CX360B · Boom Assembly

Finished length1,070 mm

Locate this hose

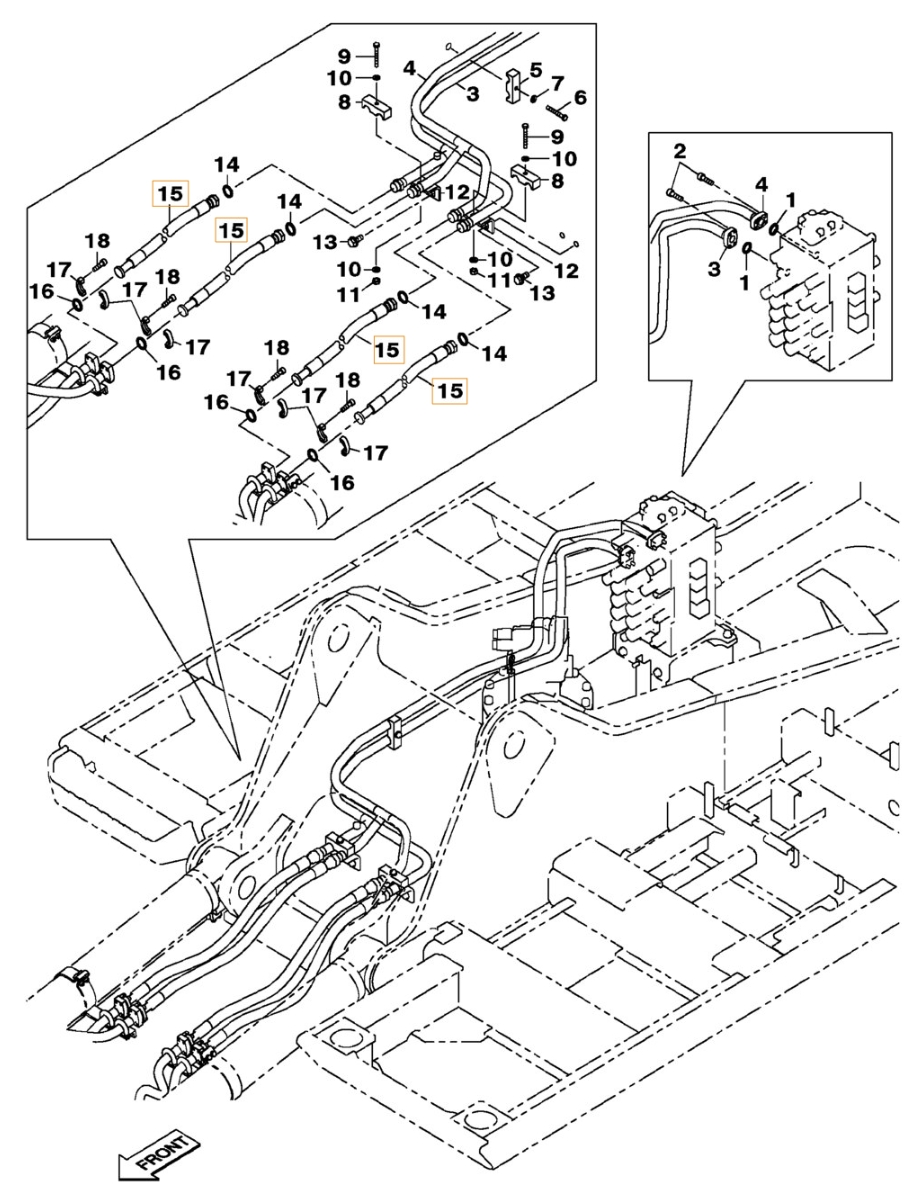

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number KSJ2683 before removing the hose.

Part number: KSJ2683
Diagram pipe number: 15
Installation route: 大臂油缸
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 1,070 mm
Working pressure: 32.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 4

Same system

Diagram Pipe No. 8

Installation route: 大臂左2

Length: 1,490 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 8

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 1,350 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

Diagram Pipe No. 7

Installation route: 大臂左1

Length: 1,390 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 14

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 1,350 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

Diagram Pipe No. 13

Installation route: 大臂左4

Length: 1,490 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
