Individual hose record

DS2095004 Hose Repair Specifications

Excavator · Doosan · DX160LC · Control Lever

Finished length2,000 mm

Locate this hose

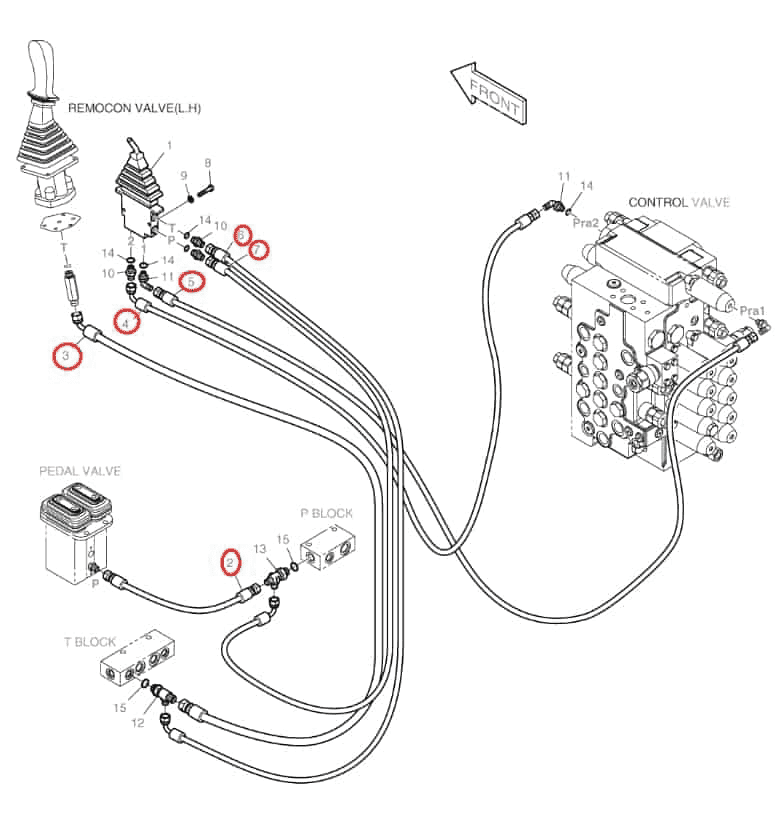

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number DS2095004 before removing the hose.

Doosan DX160LC installation diagram showing hydraulic hose DS2095004 at Pipe No. 3 — **Doosan DX160LC**Part DS2095004 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: DS2095004
Diagram pipe number: 3
Installation route: Left control lever port T → return valveOriginal Chinese: 左手柄T口~回油阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 2,000 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

DS2094006

Installation route: Left control lever port T → return valveOriginal Chinese: 左手柄T口~回油阀

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 12

DS2095001

Installation route: 右手柄1口~中转接头A8口

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 73

DS2095003

Installation route: 右手柄T口~回油阀

Length: 1,950 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

DS2095002

Installation route: 左手柄4口~中转接头A3口

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 2

DS2095002

Installation route: 左手柄2口~中转接头A4口

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 72

DS2095004

Installation route: Left control lever port P → supply valveOriginal Chinese: 左手柄P口~进油阀

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

DS2095002

Installation route: 左手柄1口~中转接头A1口

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 11

DS2095002

Installation route: 左手柄3口~中转接头A2口

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications
