Individual hose record

DS2094041 Hose Repair Specifications

Excavator · Doosan · DX60R · Attachments

Finished length950 mm

Locate this hose

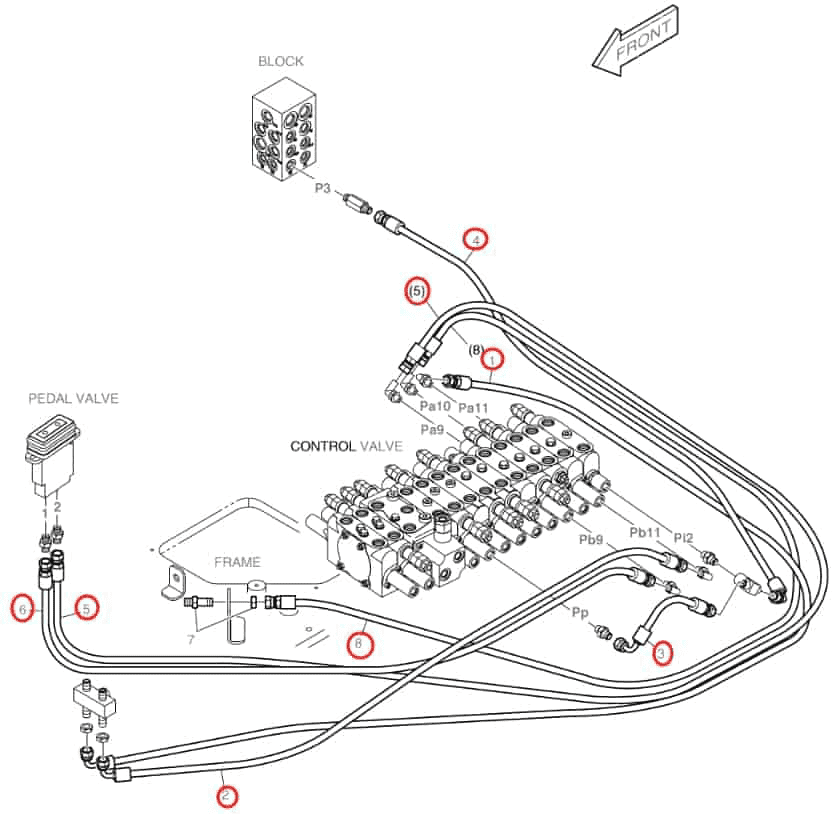

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number DS2094041 before removing the hose.

Part number: DS2094041
Diagram pipe number: 6
Installation route: 大臂摆动踏板1口~分配阀PB9口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 3

Installation route: 开关阀(小臂侧)~堵头

Length: 1,740 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 4

Installation route: 开关阀(小臂侧)~堵头

Length: 550 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 10

Installation route: 大臂摆动踏板2口~过渡接头(车架)

Length: 1,300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 12

Installation route: 回转接头~推土铲油缸
