Individual hose record
DS2058315 Hose Repair Specifications
Excavator · Doosan · DX60R · Attachments
Finished length1,180 mm
Locate this hose

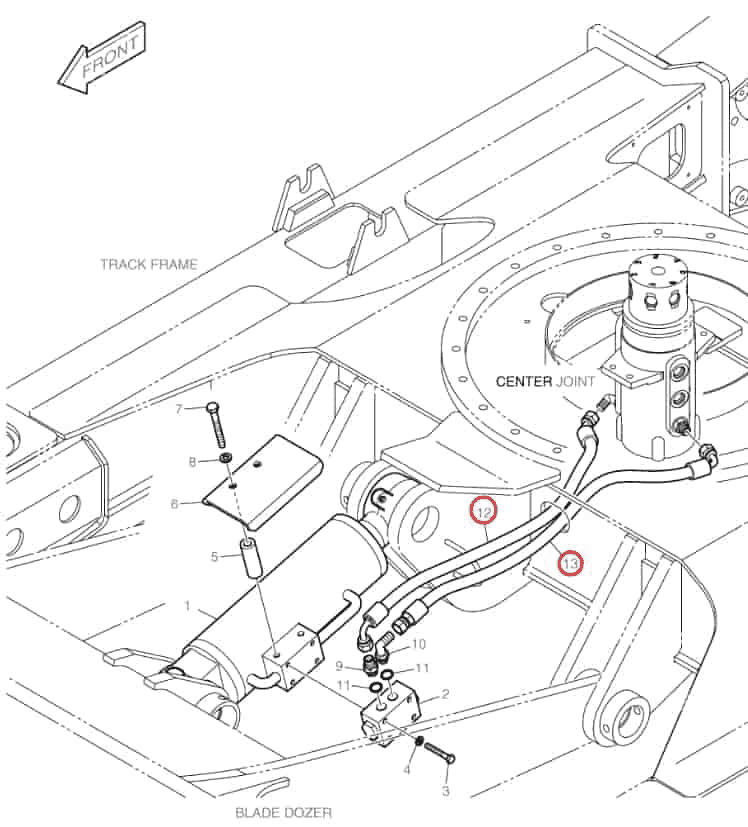

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number DS2058315 before removing the hose.
Repair specifications
- Part number
- DS2058315
- Diagram pipe number
- 12
- Installation route
- 回转接头~推土铲油缸
- Hose specification
- -
- Finished length
- 1,180 mm
- Left fitting
- 90° elbow, female threadOriginal Chinese: 90°内螺纹
- Right fitting
- 45°内螺纹
- Quantity
- 1
