Individual hose record
KNJ15690 Hose Repair Specifications
Excavator · Case · CX130C W/B · Boom Assembly
Finished length860 mm
Locate this hose

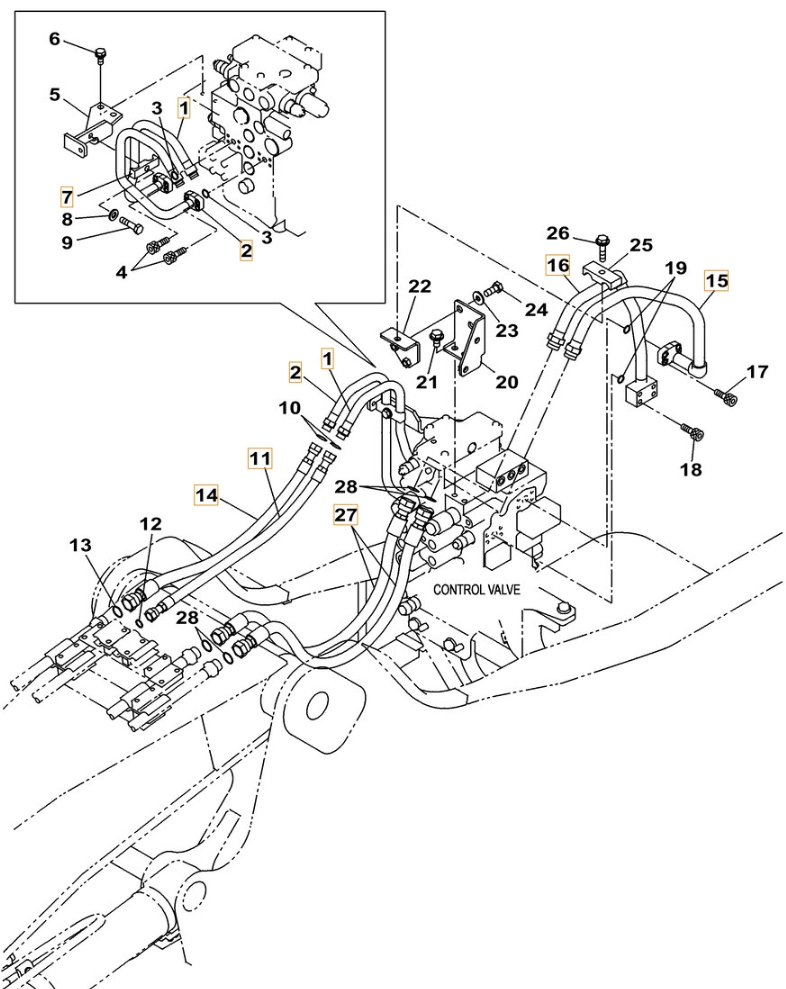

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number KNJ15690 before removing the hose.
Repair specifications
- Part number
- KNJ15690
- Diagram pipe number
- 11
- Installation route
- 大臂左3
- Hose specification
- DN16;4SP-10;38MPa
- Finished length
- 860 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
