Individual hose record

KHJ2249 Hose Repair Specifications

Excavator · Case · CX300B · Hydraulic Pump

Finished length950 mm

Locate this hose

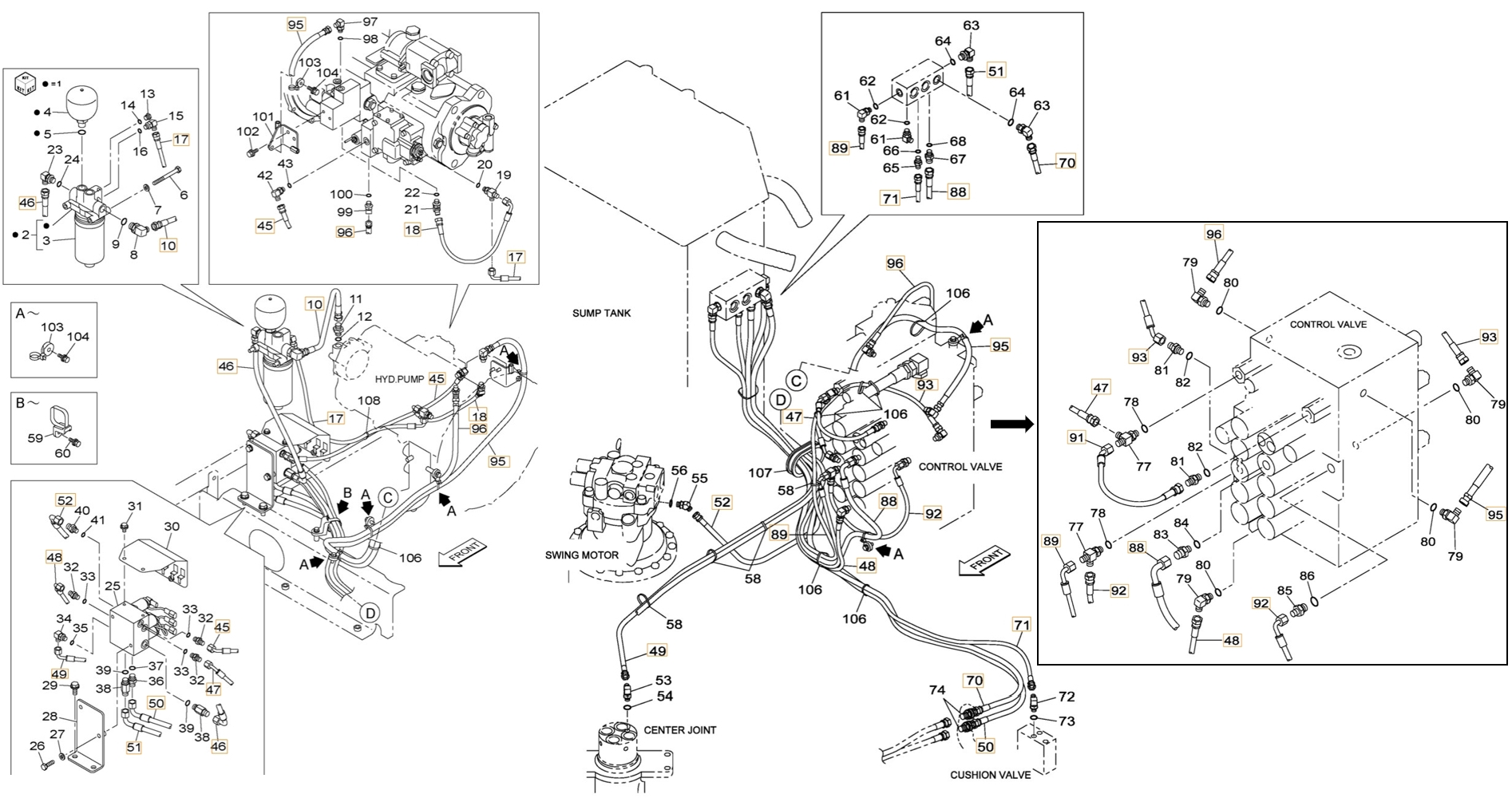

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number KHJ2249 before removing the hose.

Part number: KHJ2249
Diagram pipe number: 17
Installation route: 液压泵~先导滤芯
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 96

Installation route: 液压泵右~分配阀右

Length: 2,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 95

Installation route: 液压泵左~分配阀左

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 10

Installation route: 先导泵~吸油铁管

Length: 450 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: 英制外螺纹平面密封
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 3

Installation route: 液压泵~液压油箱

Length: 720 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
