Individual hose record
73050200A677 Hose Repair Specifications
Excavator · Sunward · SWE155F · Hydraulic Tank
Finished length910 mm
Locate this hose

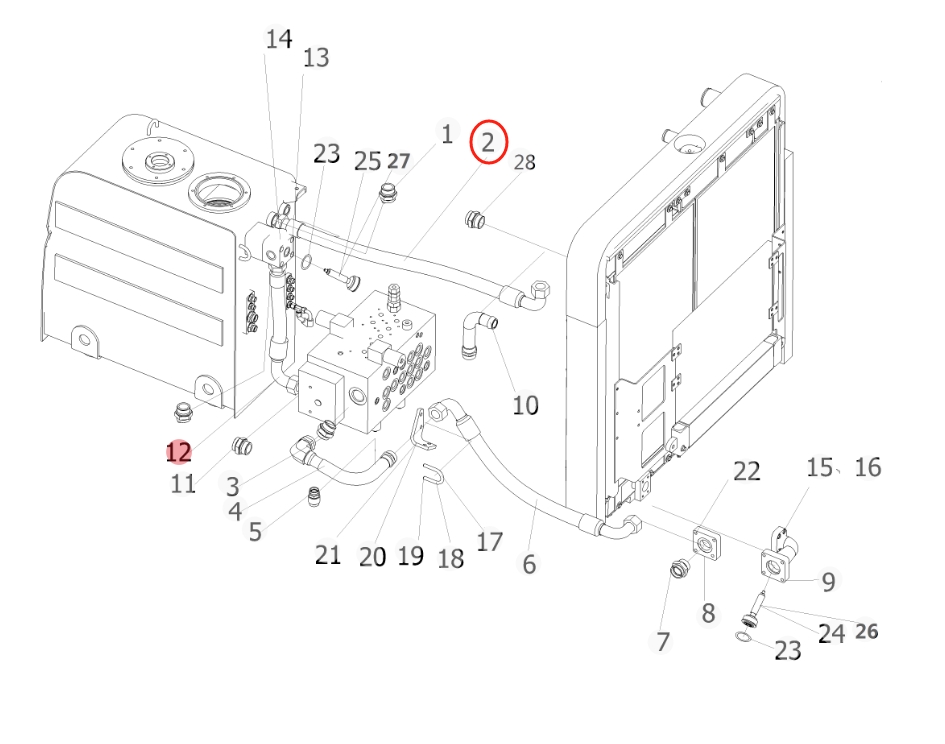

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 73050200A677 before removing the hose.
Repair specifications
- Part number
- 73050200A677
- Diagram pipe number
- 2
- Installation route
- 液压油箱~液压油散热器
- Hose specification
- DN32;1SN-20;6.3MPa
- Finished length
- 910 mm
- Working pressure
- 6.3 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
