Individual hose record

4716365 Hose Repair Specifications

Excavator · Hitachi · ZX670LC-5A · Boom Assembly

Finished length1,780 mm

Locate this hose

Installation diagram — Pipe No. 49

Locate Pipe No. 49 in the diagram, then confirm part number 4716365 before removing the hose.

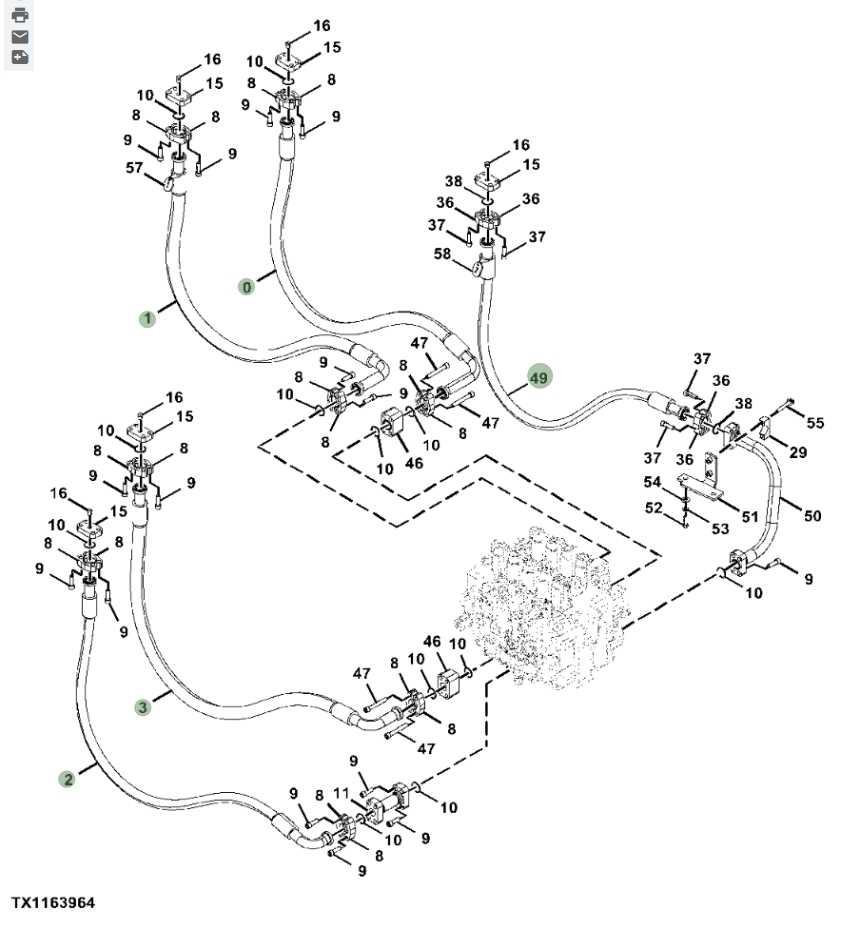

Hitachi ZX670LC-5A installation diagram showing hydraulic hose 4716365 at Pipe No. 49 — Hitachi ZX670LC-5APart 4716365 · Pipe No. 49Open full-size diagram

Repair specifications

Part number: 4716365
Diagram pipe number: 49
Installation route: 大臂左5
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 1,780 mm
Working pressure: 32.5 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

4676598

Installation route: 大臂油缸左1/左4

Length: 1,170 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 4

4644297

Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3

Length: 1,150 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications
