Individual hose record

4219322 Hose Repair Specifications

Excavator · Hitachi · EX700 · Boom Assembly

Finished length1,400 mm

Locate this hose

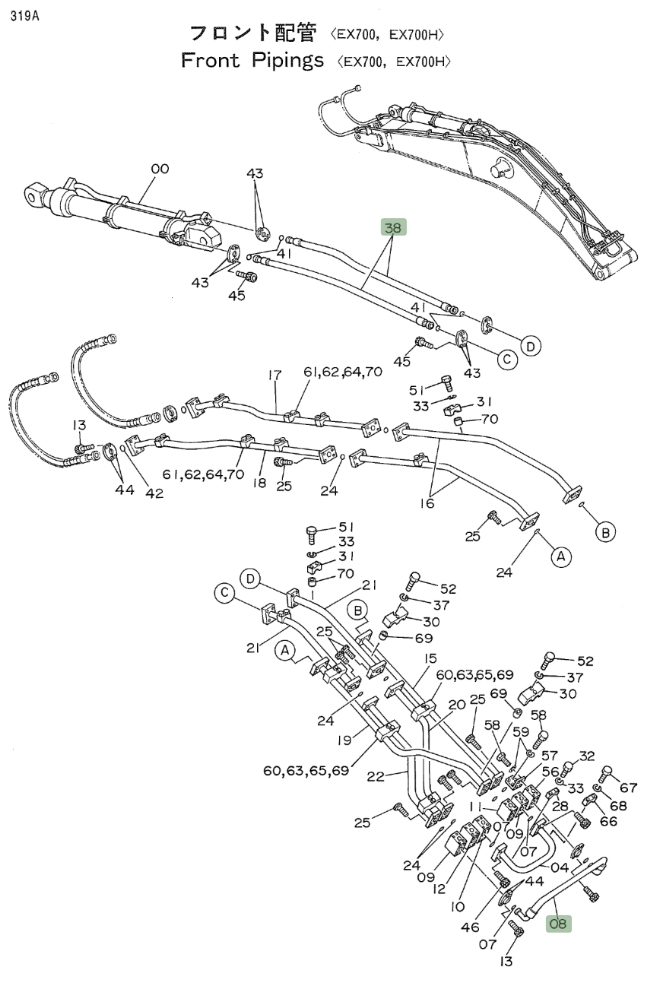

Installation diagram — Pipe No. 38

Locate Pipe No. 38 in the diagram, then confirm part number 4219322 before removing the hose.

Hitachi EX700 installation diagram showing hydraulic hose 4219322 at Pipe No. 38 — Hitachi EX700Part 4219322 · Pipe No. 38Open full-size diagram

Repair specifications

Part number: 4219322
Diagram pipe number: 38
Installation route: 小臂油缸
Hose specification: DN38;6SP-24;31MPa
Finished length: 1,400 mm
Working pressure: 31 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 2
