Individual hose record
4453426 Hose Repair Specifications
Excavator · Hitachi · EX17U · Control Lever
Finished length950 mm
Locate this hose

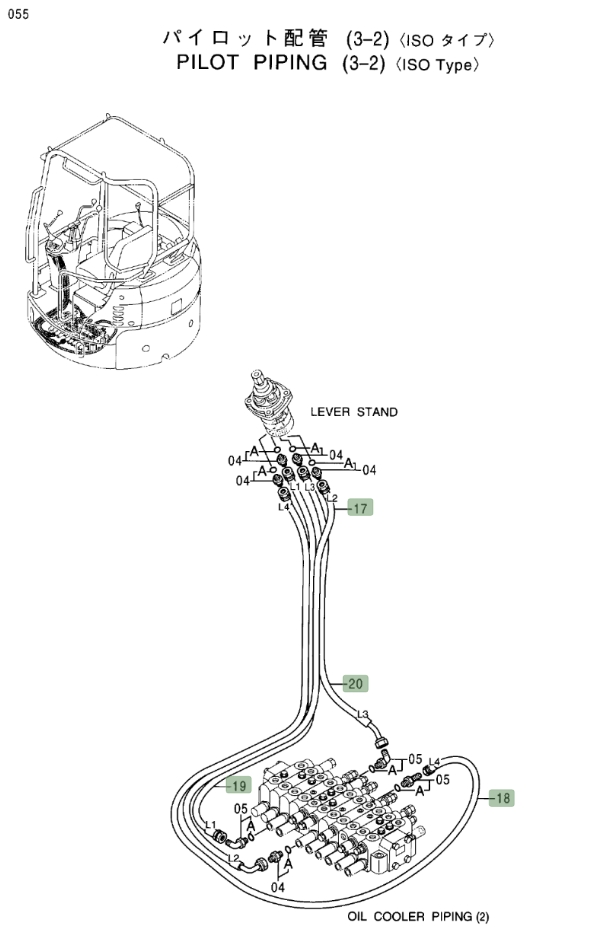

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4453426 before removing the hose.
Repair specifications
- Part number
- 4453426
- Diagram pipe number
- 19
- Installation route
- 左手柄~分配阀左前
- Hose specification
- DN5;1SN-03;7Mpa
- Finished length
- 950 mm
- Working pressure
- 7 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
