Individual hose record

4249339 Hose Repair Specifications

Excavator · Hitachi · EX200LC-2 · Boom Assembly

Finished length830 mm

Locate this hose

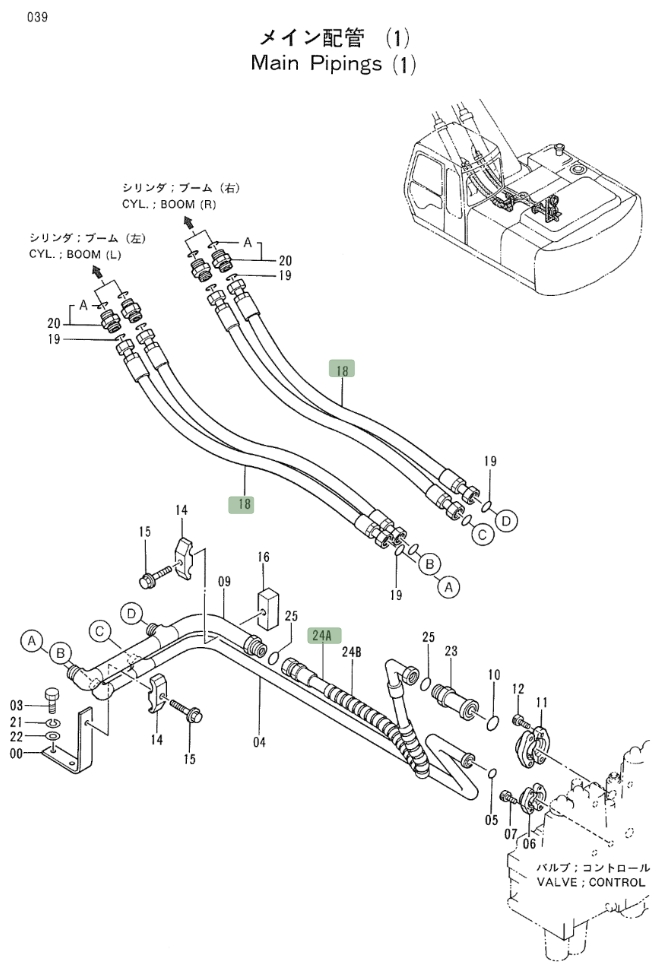

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 4249339 before removing the hose.

Part number: 4249339
Diagram pipe number: 18
Installation route: 大臂油缸
Hose specification: DN19;4SH-12;42MPa
Finished length: 830 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4

Same system

Diagram Pipe No. 12

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 850 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸

Length: 1,400 mm
Specification: DN19;4SP-12;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸

Length: 1,600 mm
Specification: DN19;4SP-12;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 24

Installation route: 铲斗油缸(前段)

Length: 850 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 13

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 850 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 16

Installation route: 小臂油缸

Length: 800 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
