Individual hose record

KHJ2084 Hose Repair Specifications

Excavator · Case · CX370B · Control Valve

Finished length350 mm

Locate this hose

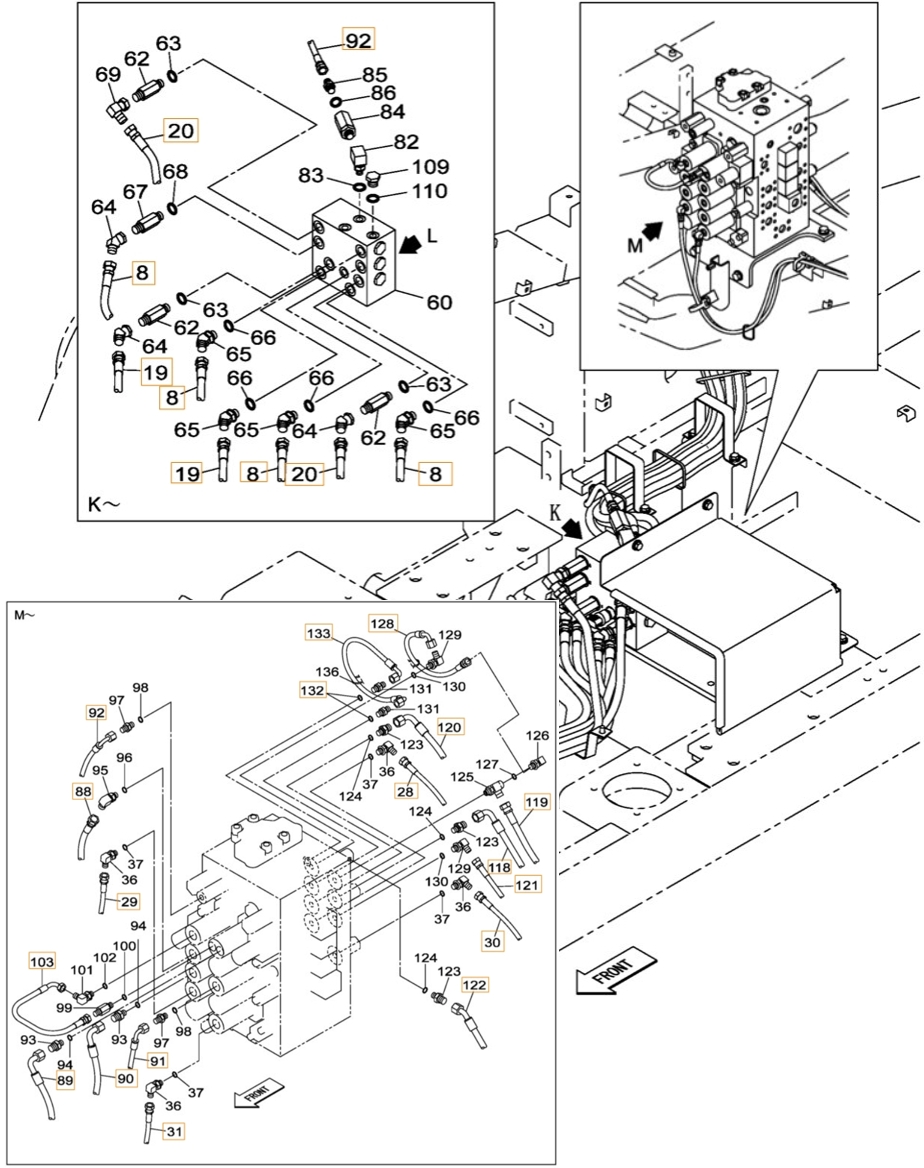

Installation diagram — Pipe No. 128

Locate Pipe No. 128 in the diagram, then confirm part number KHJ2084 before removing the hose.

Case CX370B installation diagram showing hydraulic hose KHJ2084 at Pipe No. 128 — **Case CX370B**Part KHJ2084 · Pipe No. 128Open full-size diagram

Repair specifications

Part number: KHJ2084
Diagram pipe number: 128
Installation route: 分配阀后左~分配阀后右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
