Individual hose record

KSJ12650 Hose Repair Specifications

Excavator · Case · CX370B · Control Valve

Finished length680 mm

Locate this hose

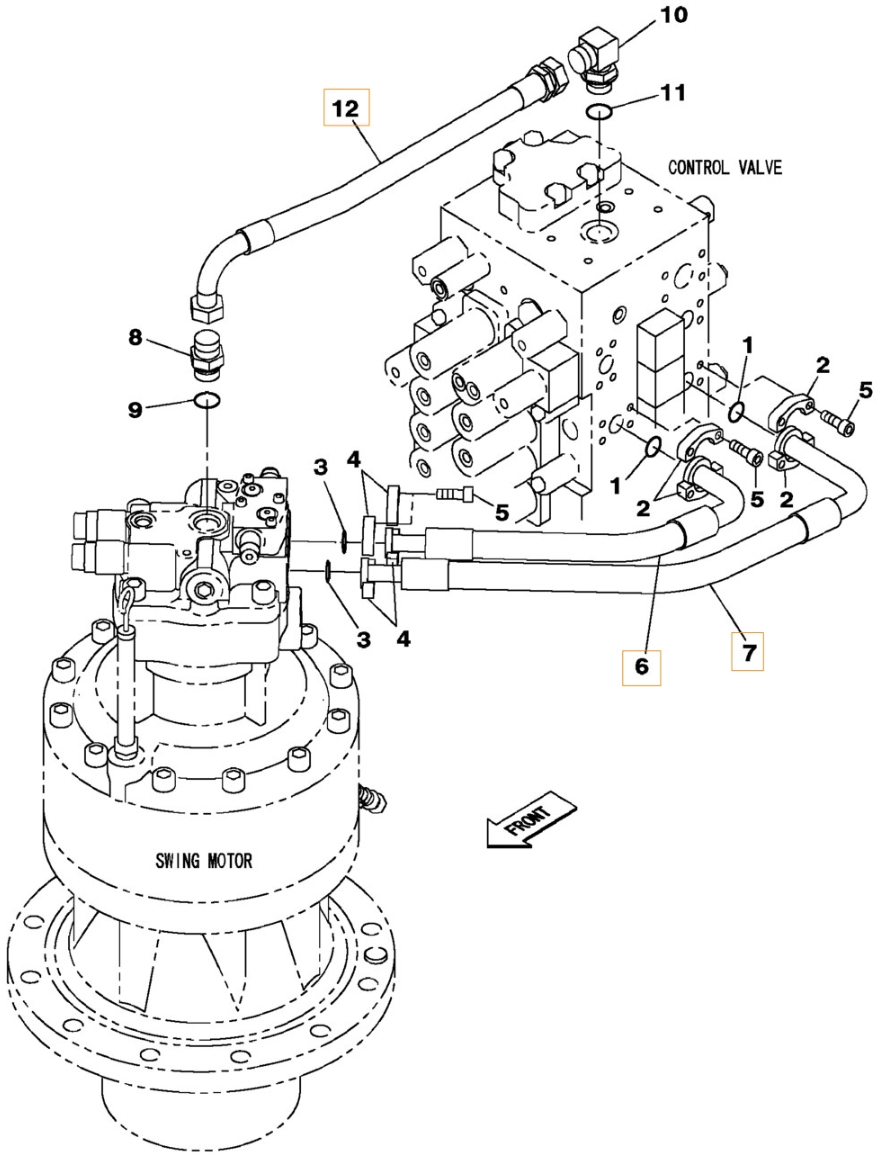

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number KSJ12650 before removing the hose.

Case CX370B installation diagram showing hydraulic hose KSJ12650 at Pipe No. 12 — **Case CX370B**Part KSJ12650 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: KSJ12650
Diagram pipe number: 12
Installation route: 分配阀顶~回转马达(回油)
Hose specification: DN25;2SN-16;16.5MPa
Finished length: 680 mm
Working pressure: 16.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
