Individual hose record

KHJ2195 Hose Repair Specifications

Excavator · Case · CX250D LC LR · Control Lever

Finished length680 mm

Locate this hose

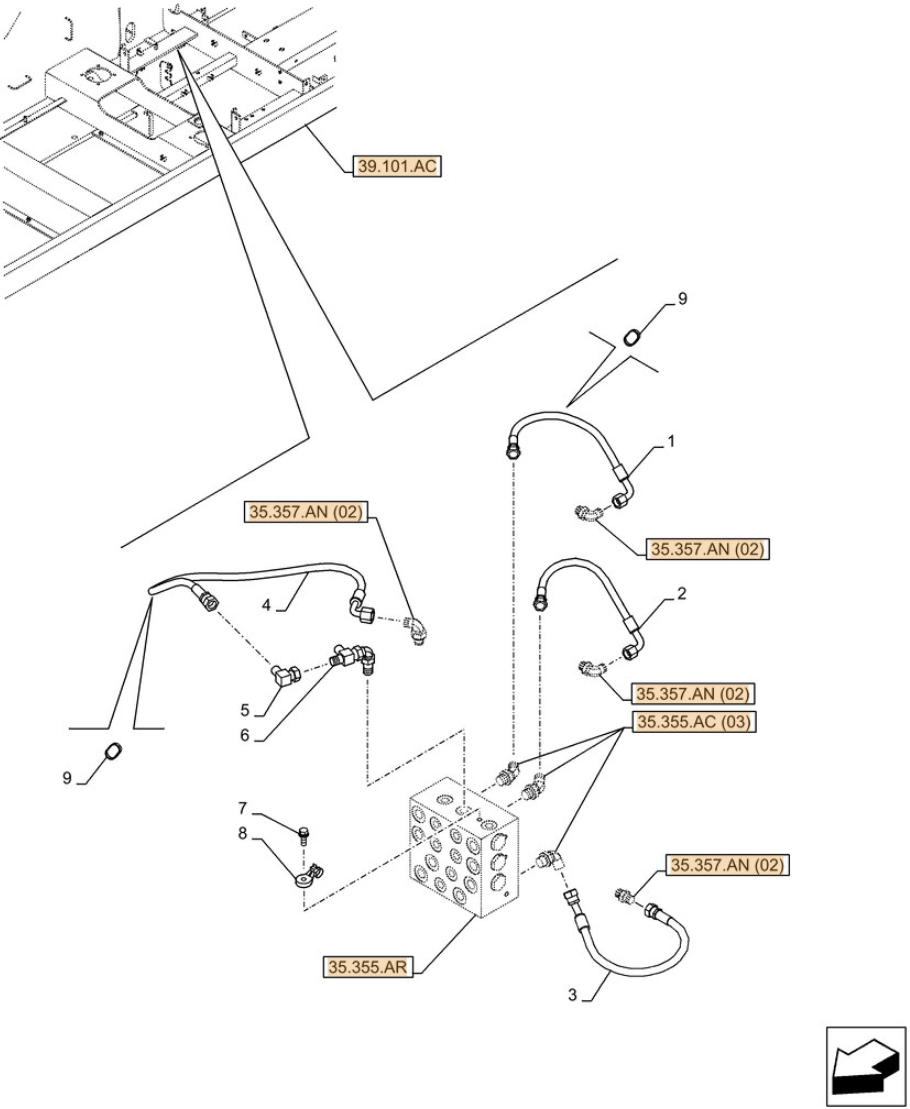

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number KHJ2195 before removing the hose.

Case CX250D LC LR installation diagram showing hydraulic hose KHJ2195 at Pipe No. 4 — **Case CX250D LC LR**Part KHJ2195 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: KHJ2195
Diagram pipe number: 4
Installation route: 中转接头~电磁阀(中转接头)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 680 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
