Individual hose record

159217A1 Hose Repair Specifications

Excavator · Case · CX250D LC LR · Control Lever

Finished length1,850 mm

Locate this hose

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 159217A1 before removing the hose.

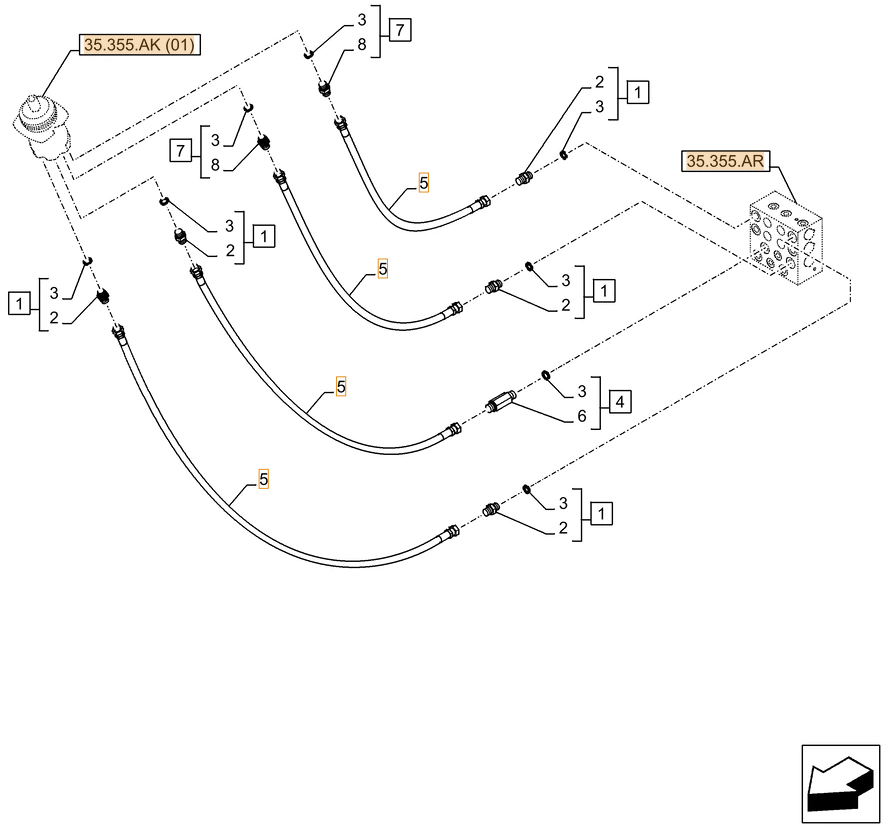

Case CX250D LC LR installation diagram showing hydraulic hose 159217A1 at Pipe No. 5 — **Case CX250D LC LR**Part 159217A1 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 159217A1
Diagram pipe number: 5
Installation route: 右手柄~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,850 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 4
