Individual hose record
DS2055748 Hose Repair Specifications
Excavator · Doosan · E57W · Hydraulic Pump
Finished length320 mm
Locate this hose

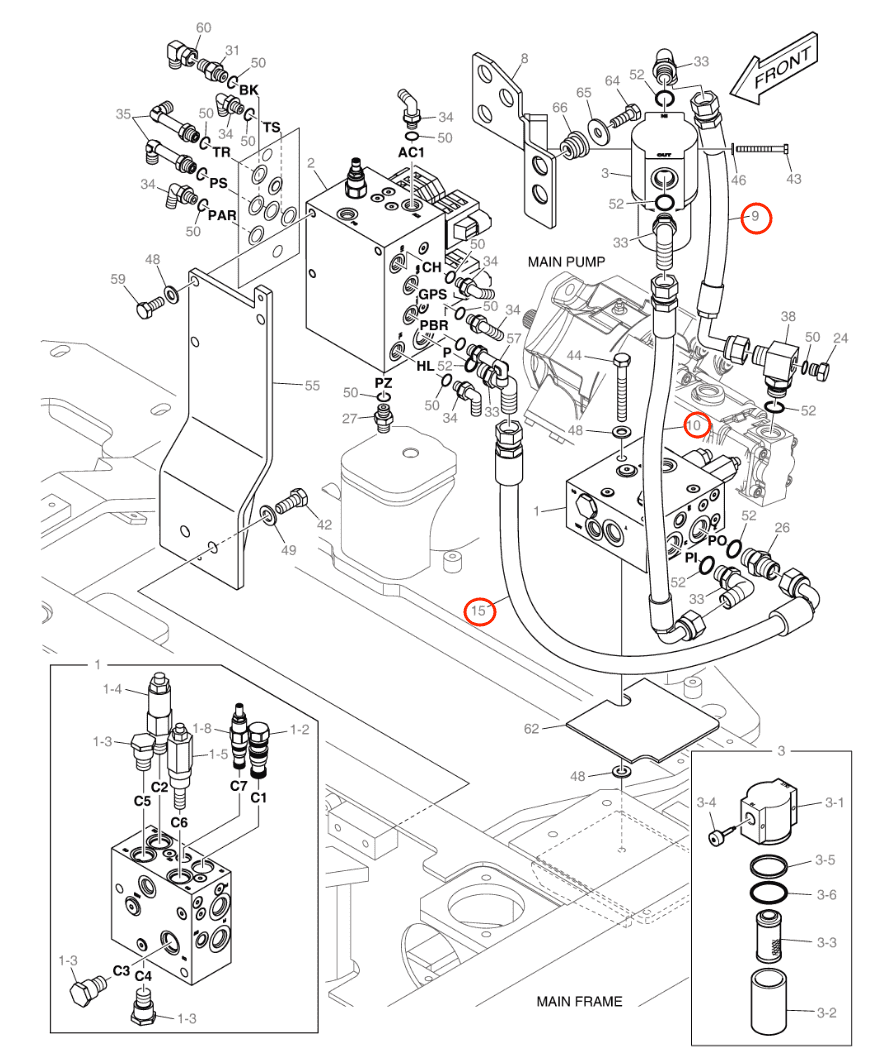

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number DS2055748 before removing the hose.
Repair specifications
- Part number
- DS2055748
- Diagram pipe number
- 9
- Installation route
- 液压泵~液压油过滤器
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 320 mm
- Working pressure
- 16 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
