Individual hose record
KRJ10710 Hose Repair Specifications
Excavator · Case · CX220C · Swivel Joint
Finished length780 mm
Locate this hose

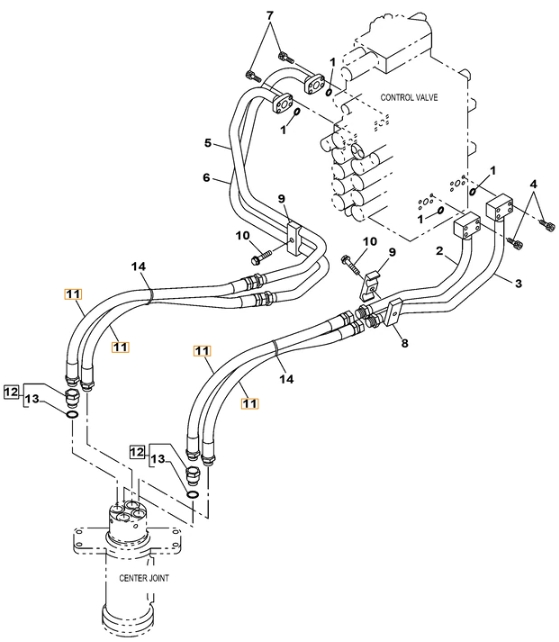

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number KRJ10710 before removing the hose.
Repair specifications
- Part number
- KRJ10710
- Diagram pipe number
- 11
- Installation route
- 回转接头~分配阀
- Hose specification
- DN19;4SP-12;35MPa
- Finished length
- 780 mm
- Working pressure
- 35 MPa
- Left fitting
- 英制外螺纹平面密封
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 4
