Individual hose record
4342264 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3 · Swing Motor
Finished length1,150 mm
Locate this hose

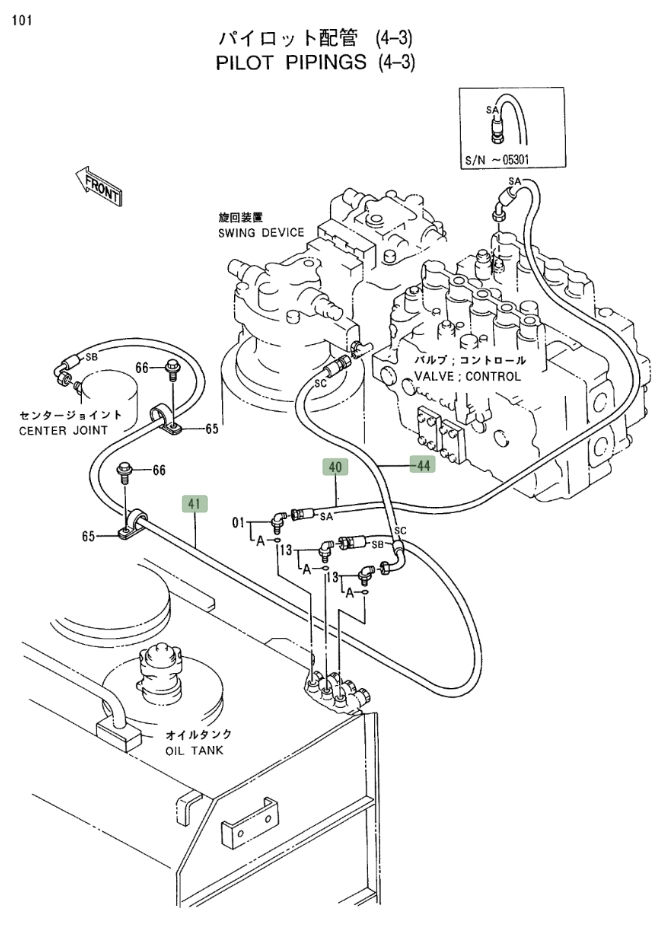

Installation diagram — Pipe No. 44
Locate Pipe No. 44 in the diagram, then confirm part number 4342264 before removing the hose.
Repair specifications
- Part number
- 4342264
- Diagram pipe number
- 44
- Installation route
- 回转马达(左)~电磁阀
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,150 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
