Individual hose record
DS2121044 Hose Repair Specifications
Excavator · Doosan · DX140W-5 · Control Valve
Finished length1,400 mm
Locate this hose

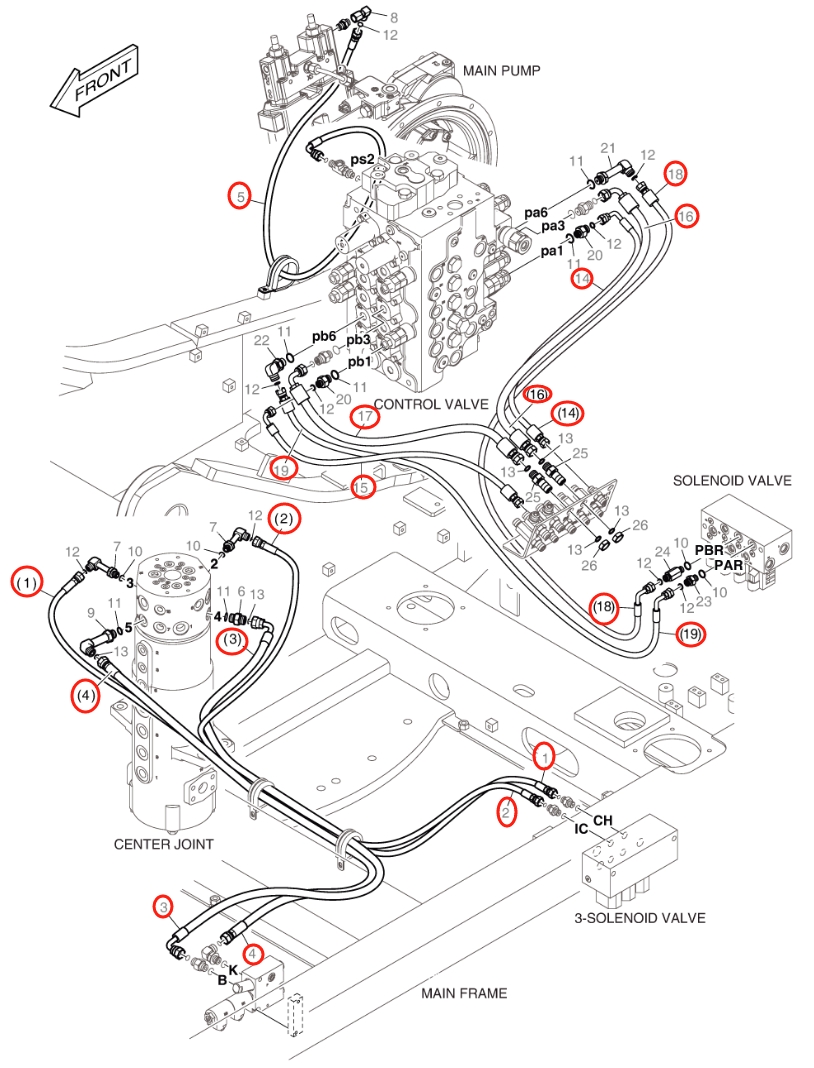

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number DS2121044 before removing the hose.
Repair specifications
- Part number
- DS2121044
- Diagram pipe number
- 18
- Installation route
- 分配阀PA6口~电磁阀PBR口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,400 mm
- Working pressure
- 22.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
