Individual hose record

4313440 Hose Repair Specifications

Excavator · Hitachi · ZX330LC · Swivel Joint

Finished length2,200 mm

Locate this hose

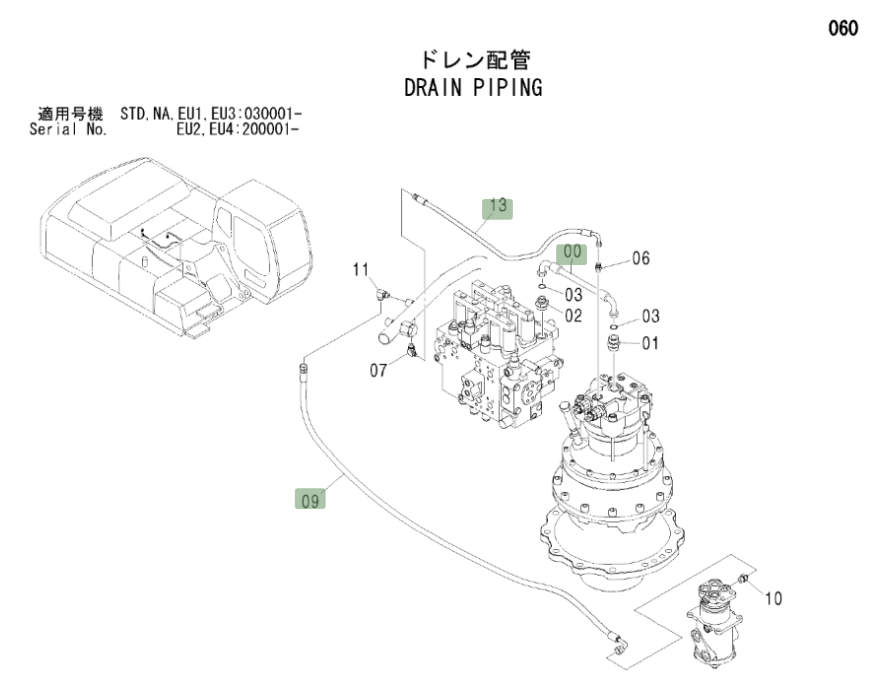

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4313440 before removing the hose.

Hitachi ZX330LC installation diagram showing hydraulic hose 4313440 at Pipe No. 9 — **Hitachi ZX330LC**Part 4313440 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 4313440
Diagram pipe number: 9
Installation route: 回转接头~回油铁管(液压油箱)
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 2,200 mm
Working pressure: 27.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 26

9235478

Installation route: 回转接头~分配阀左下

Length: 960 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

4438098

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 0

4377482

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

9163647

Installation route: 回转接头~分配阀左上/右上

Length: 1,450 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications

Diagram Pipe No. 25

4294424

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,250 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 24

4284508

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,300 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 14

4450505

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 25

4284507

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,300 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications
