Individual hose record
4429280 Hose Repair Specifications
Excavator · Hitachi · ZX160LC-6N · Grease Lines
Finished length2,700 mm
Locate this hose

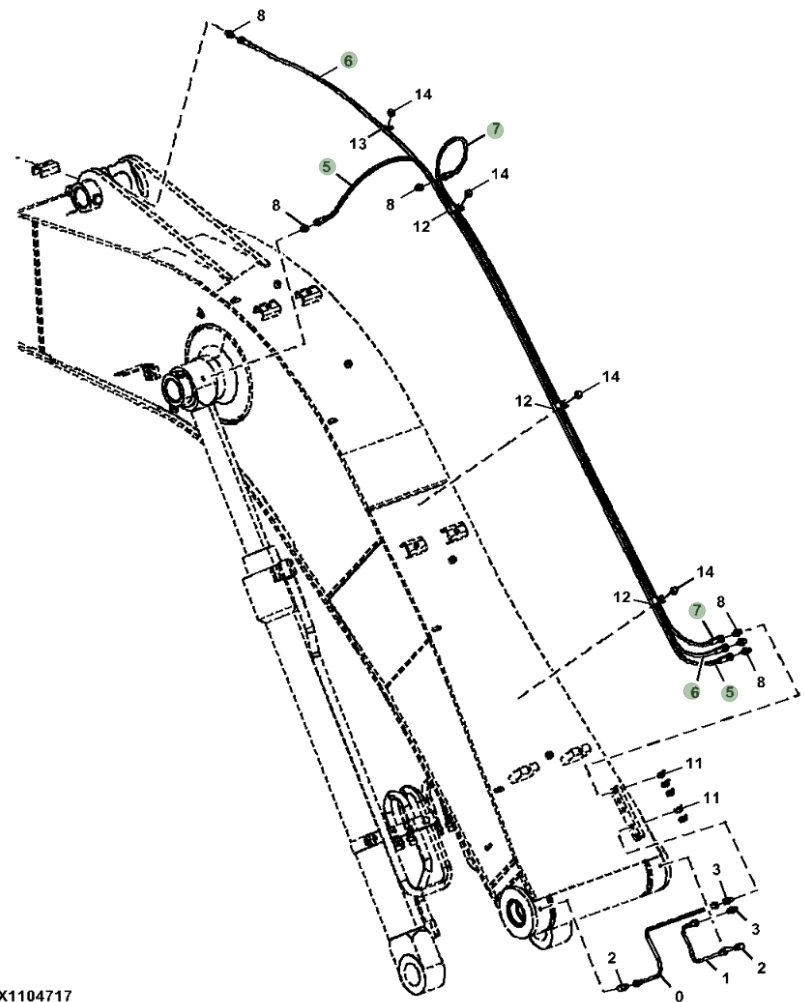

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4429280 before removing the hose.
Repair specifications
- Part number
- 4429280
- Diagram pipe number
- 5
- Installation route
- Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,700 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
