Individual hose record
4601514 Hose Repair Specifications
Excavator · Hitachi · ZX270LC · Attachments – Quick Coupler
Finished length1,900 mm
Locate this hose

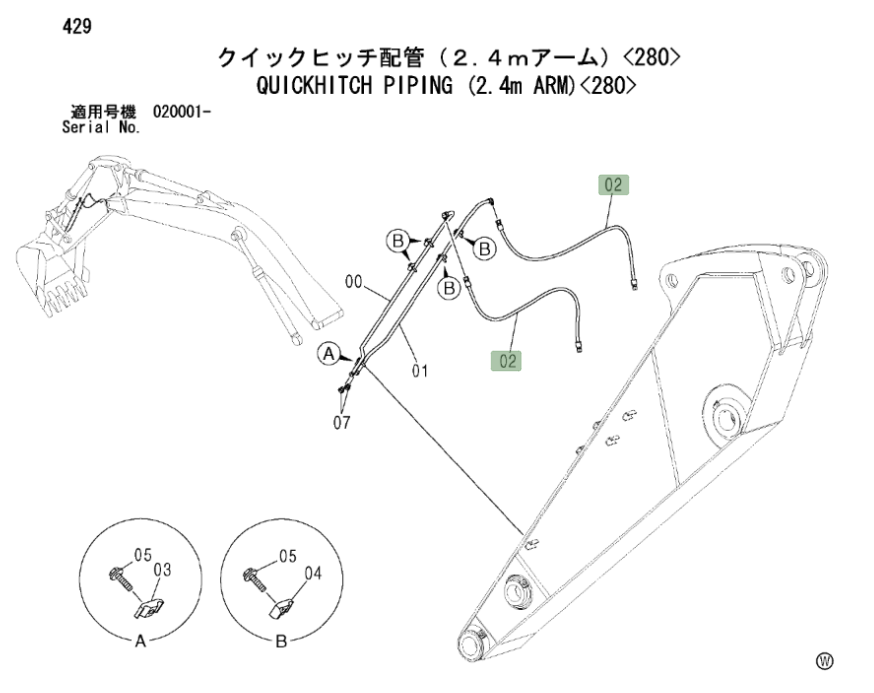

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4601514 before removing the hose.
Repair specifications
- Part number
- 4601514
- Diagram pipe number
- 2
- Installation route
- 大臂(快换)~小臂(快换)
- Hose specification
- DN10;2SN-06;34.5MPa
- Finished length
- 1,900 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 2
