Individual hose record
4328607 Hose Repair Specifications
Excavator · Hitachi · EX300LC-3 · Hydraulic Tank
Finished length1,670 mm
Locate this hose

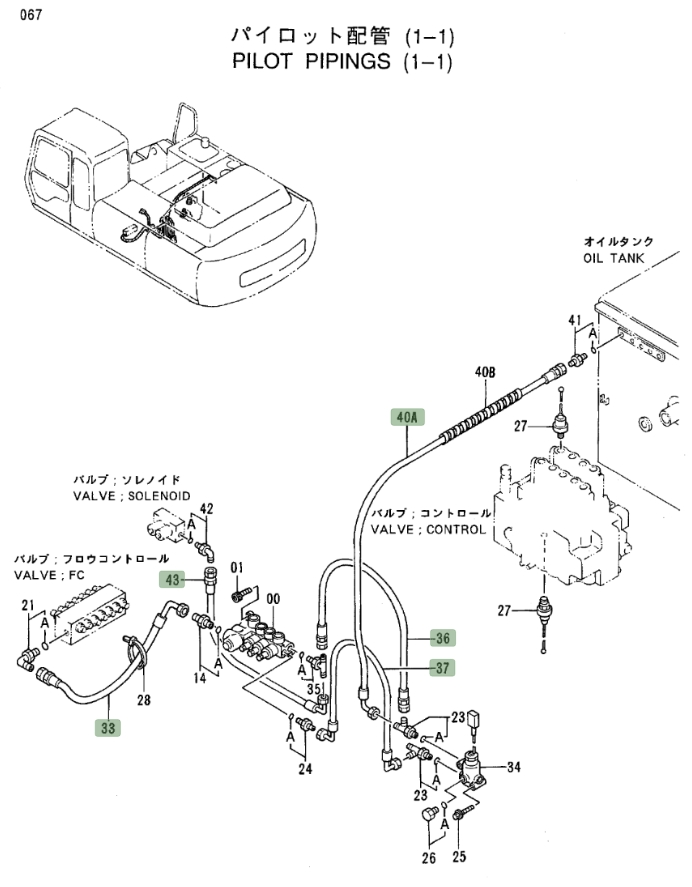

Installation diagram — Pipe No. 40A
Locate Pipe No. 40A in the diagram, then confirm part number 4328607 before removing the hose.
Repair specifications
- Part number
- 4328607
- Diagram pipe number
- 40A
- Installation route
- 液压油箱~电磁阀(液压泵)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,670 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
