Individual hose record

730502007490 Hose Repair Specifications

Excavator · Sunward · SWE150W · Hydraulic Tank

Finished length2,300 mm

Locate this hose

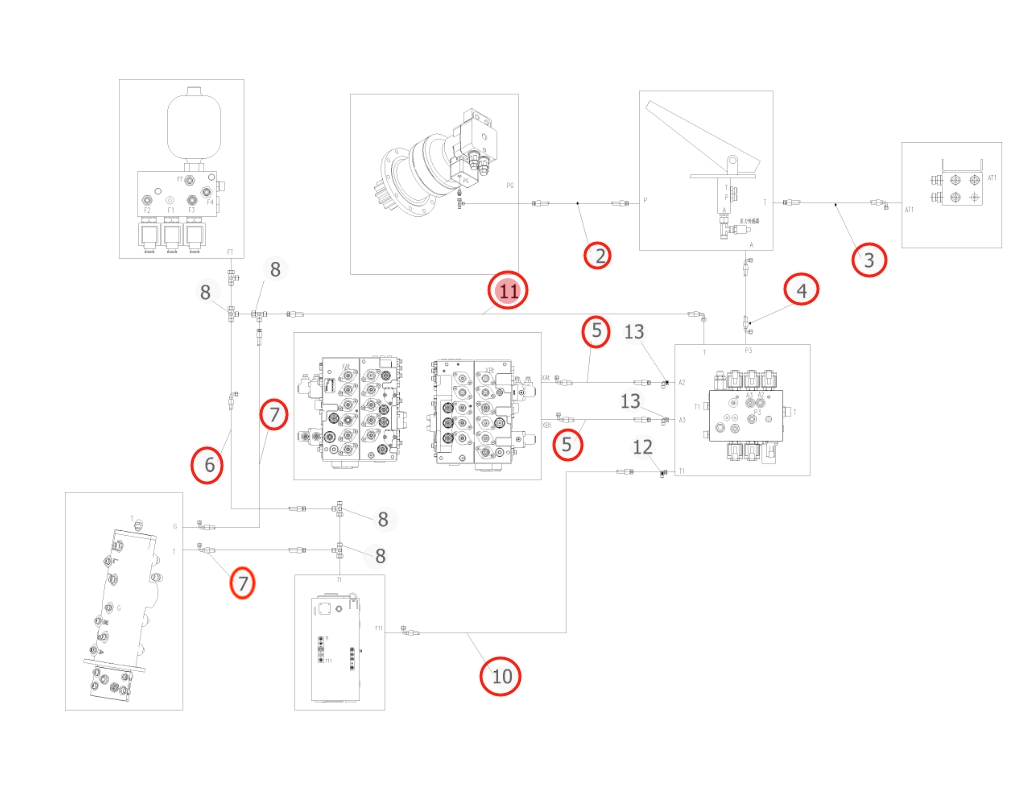

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 730502007490 before removing the hose.

Sunward SWE150W installation diagram showing hydraulic hose 730502007490 at Pipe No. 10 — Sunward SWE150WPart 730502007490 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 730502007490
Diagram pipe number: 10
Installation route: 液压油箱T11~行走电磁阀T1
Hose specification: DN10;1SN-06;20.7MPa
Finished length: 2,300 mm
Working pressure: 20.7 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

73050200D075

Installation route: 液压油箱~液压油散热器

Length: 920 mm
Specification: DN32;1SN-20;6.3MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 3

730502001909

Installation route: 液压油箱T4~电磁阀(换挡)T

Length: 2,700 mm
Specification: DN12;1SN-08;17.2MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 13

73050200C462

Installation route: 液压油箱~过渡阀块

Length: 605 mm
Specification: DN32;1SN-20;6.3MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 3

73050200D009

Installation route: 液压油箱~液压油散热器

Length: 890 mm
Specification: DN32;1SN-20;6.3MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
