Individual hose record

73050200C462 Hose Repair Specifications

Excavator · Sunward · SWE150W · Hydraulic Tank

Finished length605 mm

Locate this hose

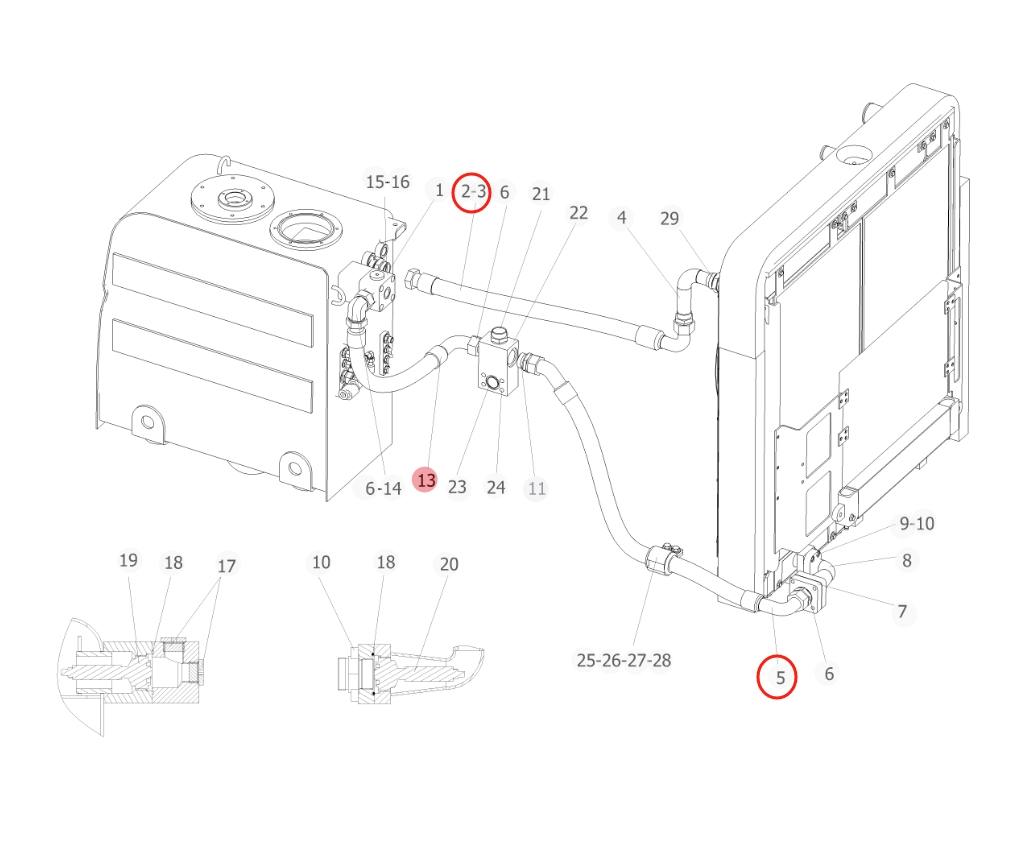

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 73050200C462 before removing the hose.

Sunward SWE150W installation diagram showing hydraulic hose 73050200C462 at Pipe No. 13 — Sunward SWE150WPart 73050200C462 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 73050200C462
Diagram pipe number: 13
Installation route: 液压油箱~过渡阀块
Hose specification: DN32;1SN-20;6.3MPa
Finished length: 605 mm
Working pressure: 6.3 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

73050200D075

Installation route: 液压油箱~液压油散热器

Length: 920 mm
Specification: DN32;1SN-20;6.3MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
