KRJ10750 Hose Repair Specifications

Excavator · Case · CX220B · Control Valve

Finished length650 mm

Locate this hose

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number KRJ10750 before removing the hose.

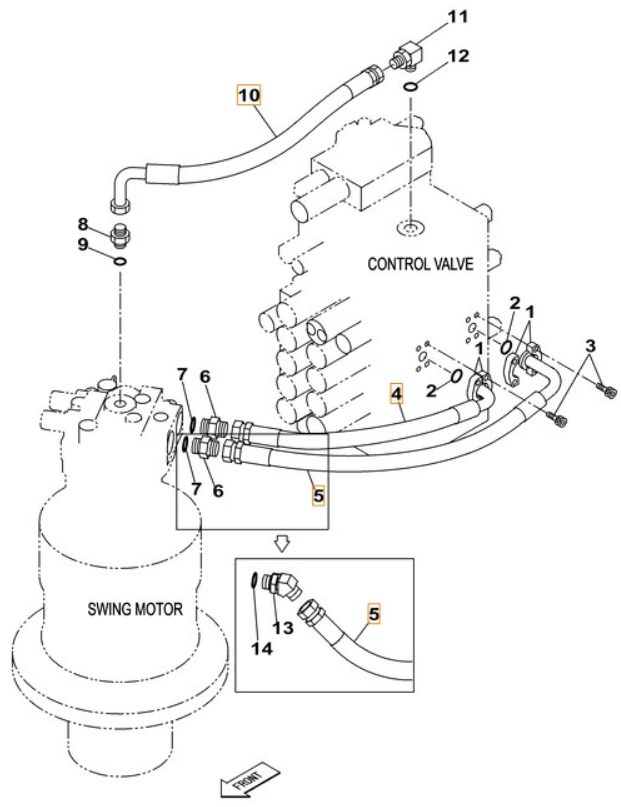

Case CX220B installation diagram showing hydraulic hose KRJ10750 at Pipe No. 10 — **Case CX220B**Part KRJ10750 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: KRJ10750
Diagram pipe number: 10
Installation route: 分配阀上~回转马达(回油)
Hose specification: DN25;2SN-16;16.5MPa
Finished length: 650 mm
Working pressure: 16.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
