Individual hose record

4250871 Hose Repair Specifications

Excavator · Hitachi · EX400LC · Attachments – Lock Valve

Finished length2,650 mm

Locate this hose

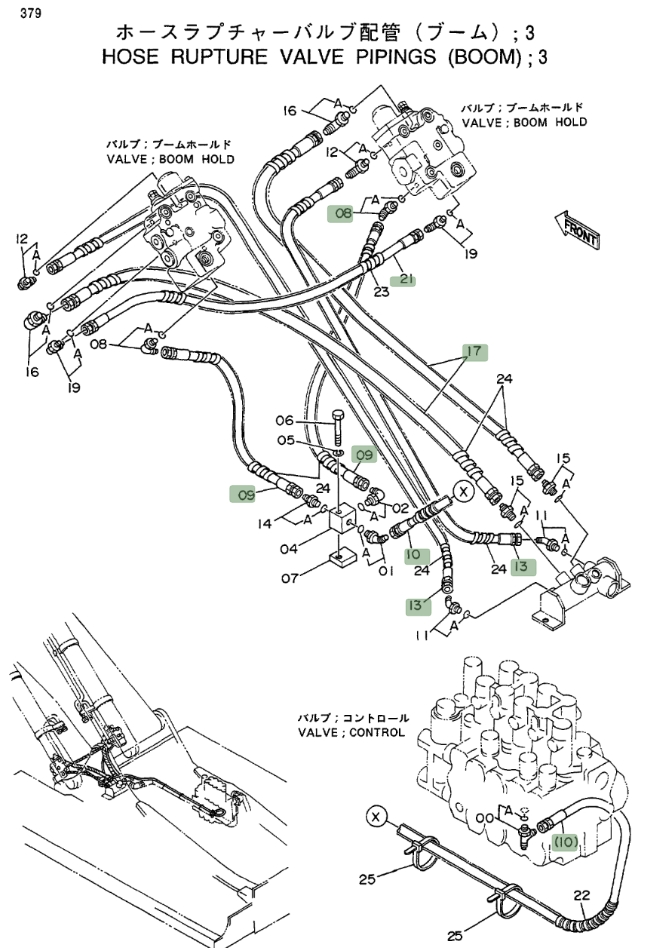

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4250871 before removing the hose.

Hitachi EX400LC installation diagram showing hydraulic hose 4250871 at Pipe No. 10 — Hitachi EX400LCPart 4250871 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4250871
Diagram pipe number: 10
Installation route: 过渡阀块(锁止阀)~分配阀下
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,650 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 3

4247350

Installation route: 小臂油缸锁止阀~分配阀下

Length: 10,000 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 9

4250872

Installation route: 大臂油缸锁止阀~过渡阀块(锁止阀)

Length: 590 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 2

4247349

Installation route: 小臂油缸锁止阀~分配阀上左

Length: 8,300 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
