Individual hose record
4649732 Hose Repair Specifications
Excavator · Hitachi · ZX250LC-6N · Swing Motor
Finished length900 mm
Locate this hose

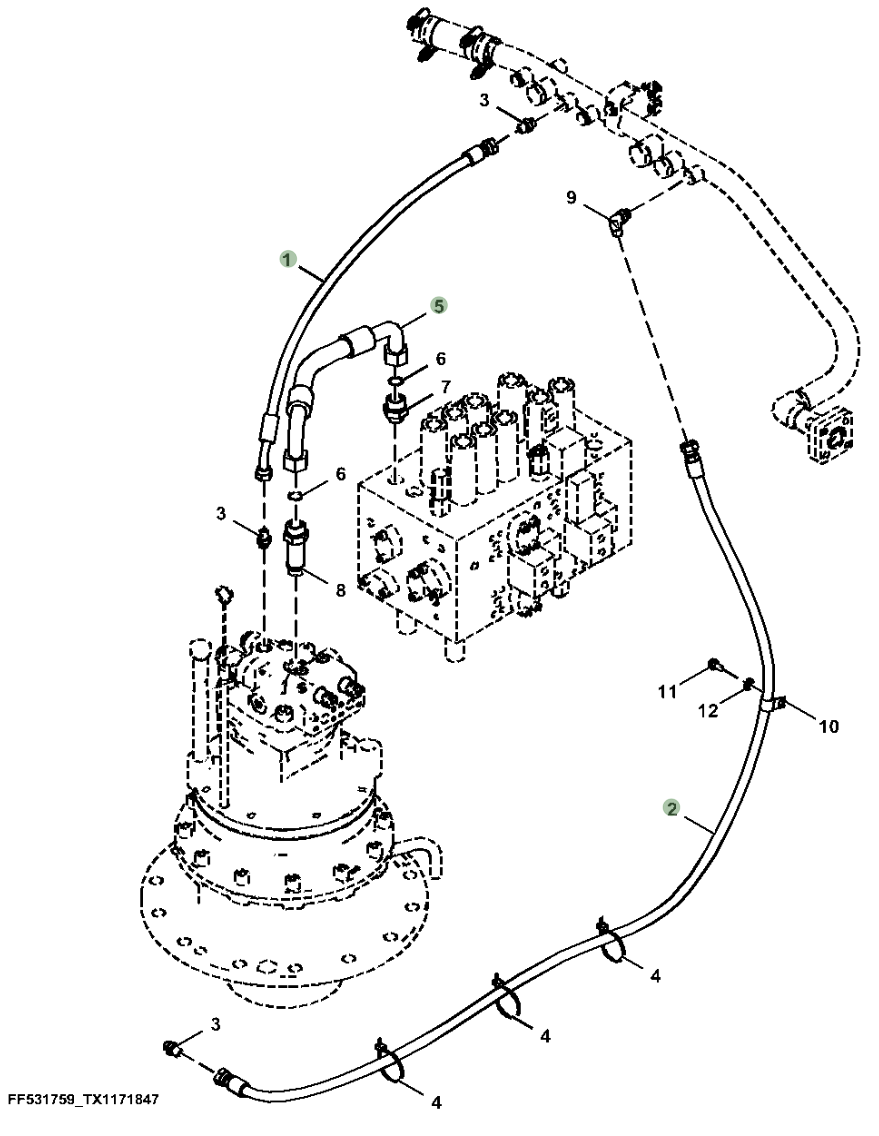

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4649732 before removing the hose.
Repair specifications
- Part number
- 4649732
- Diagram pipe number
- 1
- Installation route
- Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 900 mm
- Working pressure
- 16 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 45°美制内螺纹74°内锥
- Quantity
- 1
