Individual hose record
4654322 Hose Repair Specifications
Excavator · Hitachi · ZX350LC-6N · Boom Assembly
Finished length840 mm
Locate this hose

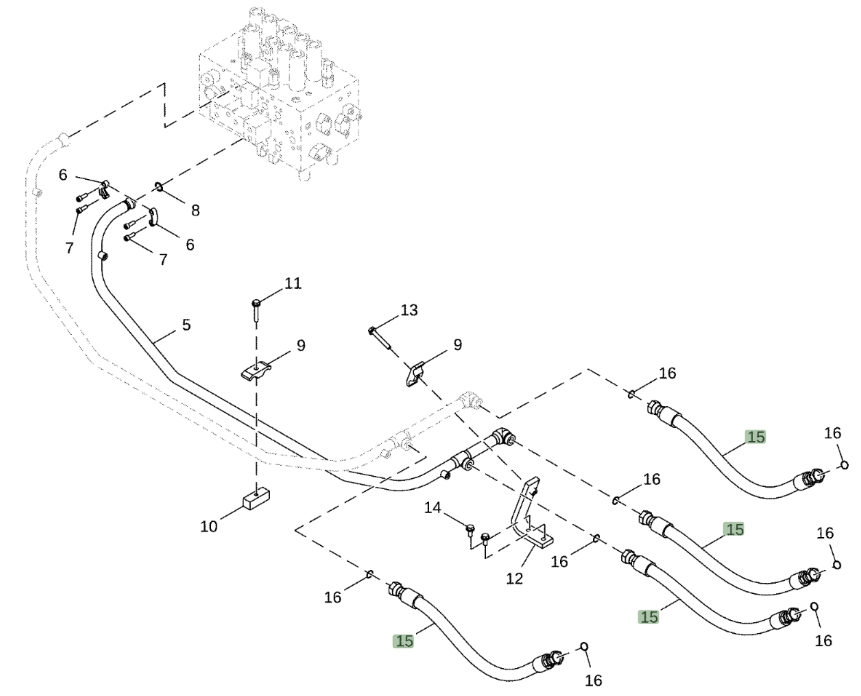

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 4654322 before removing the hose.
Repair specifications
- Part number
- 4654322
- Diagram pipe number
- 15
- Installation route
- 大臂油缸
- Hose specification
- DN25;4SH-16;38.8MPa
- Finished length
- 840 mm
- Working pressure
- 38.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 4
