Individual hose record
KRJ11180 Hose Repair Specifications
Excavator · Case · CX230B · Hydraulic Pump
Finished length520 mm
Locate this hose

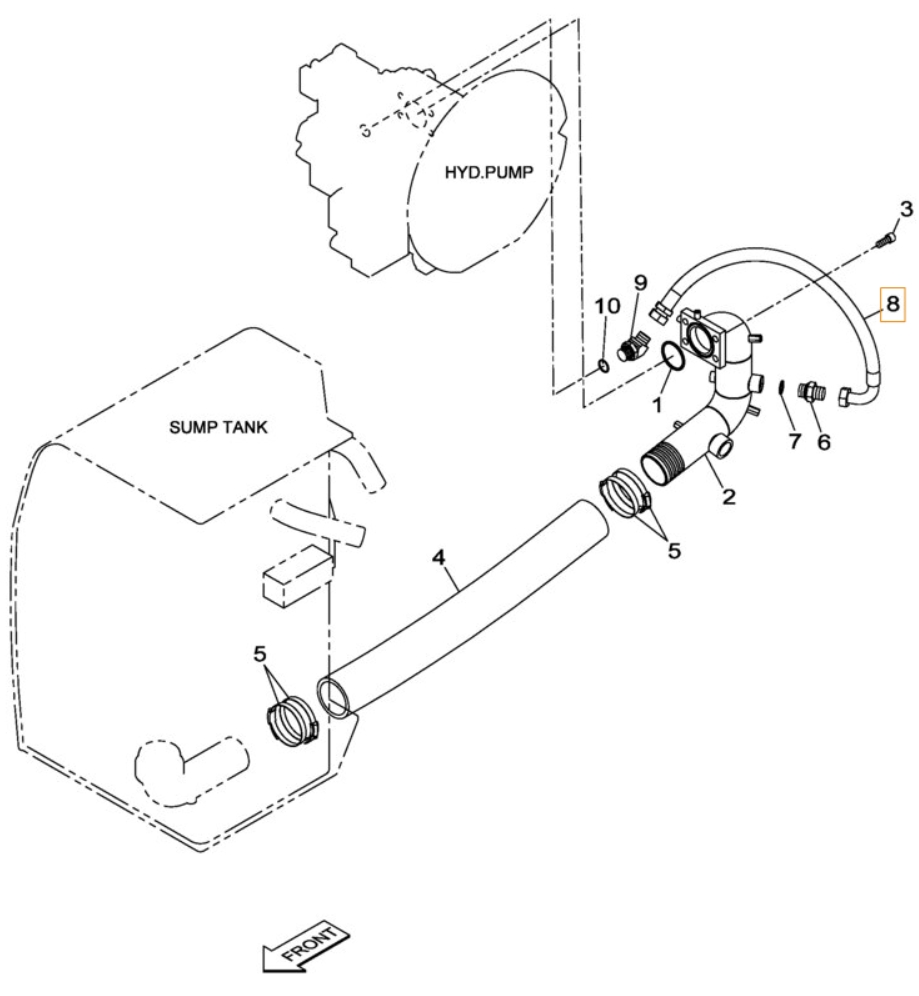

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number KRJ11180 before removing the hose.
Repair specifications
- Part number
- KRJ11180
- Diagram pipe number
- 8
- Installation route
- 液压泵~吸油铁管
- Hose specification
- DN19;2SN-12;21.5MPa
- Finished length
- 520 mm
- Working pressure
- 21.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
