KNJ3011 Hose Repair Specifications

Excavator · Case · CX350B · Swivel Joint

Finished length2,500 mm

Locate this hose

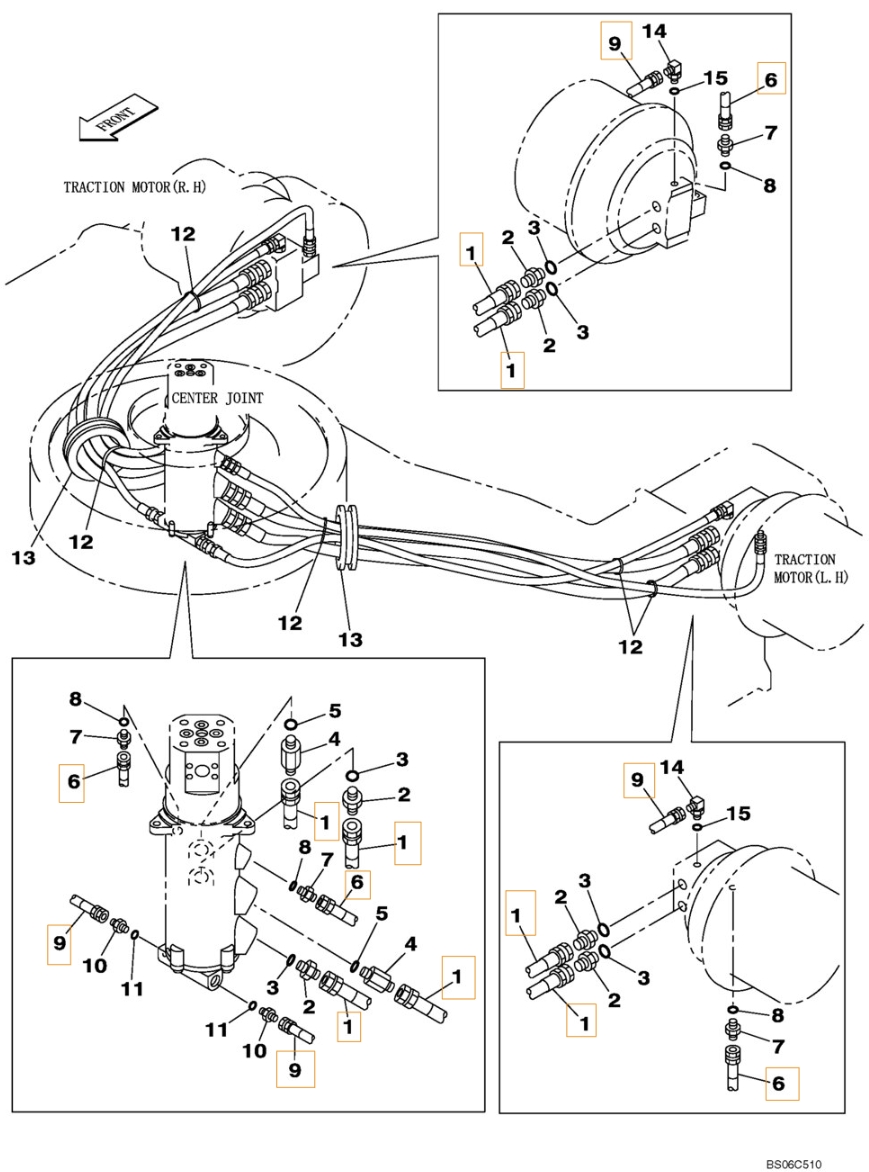

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number KNJ3011 before removing the hose.

Part number: KNJ3011
Diagram pipe number: 9
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 2,500 mm
Working pressure: 27.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 2

Same system

Diagram Pipe No. 6

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 14

Installation route: 回转接头~回转马达(回油)

Length: 880 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 49

Installation route: 回转接头~电磁阀

Length: 3,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,350 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
