Individual hose record
73050200D125 Hose Repair Specifications
Excavator · Sunward · SWE135E-3H · Control Valve
Finished length740 mm
Locate this hose

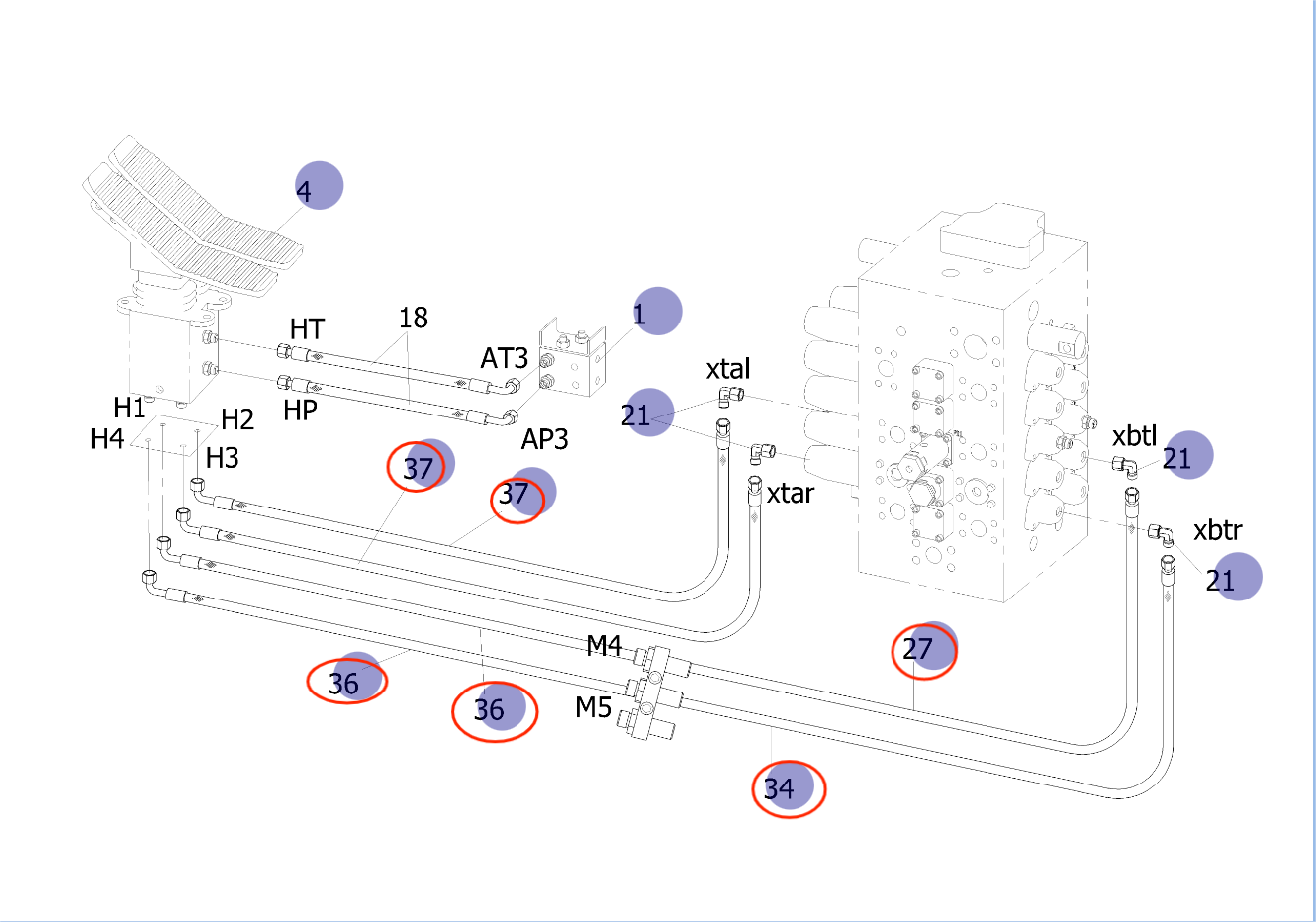

Installation diagram — Pipe No. 34
Locate Pipe No. 34 in the diagram, then confirm part number 73050200D125 before removing the hose.
Repair specifications
- Part number
- 73050200D125
- Diagram pipe number
- 34
- Installation route
- 分配阀XBTR~接头M5
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 740 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 2
