Individual hose record
4343383 Hose Repair Specifications
Excavator · Hitachi · EX550LC · Hydraulic Tank
Finished length450 mm
Locate this hose

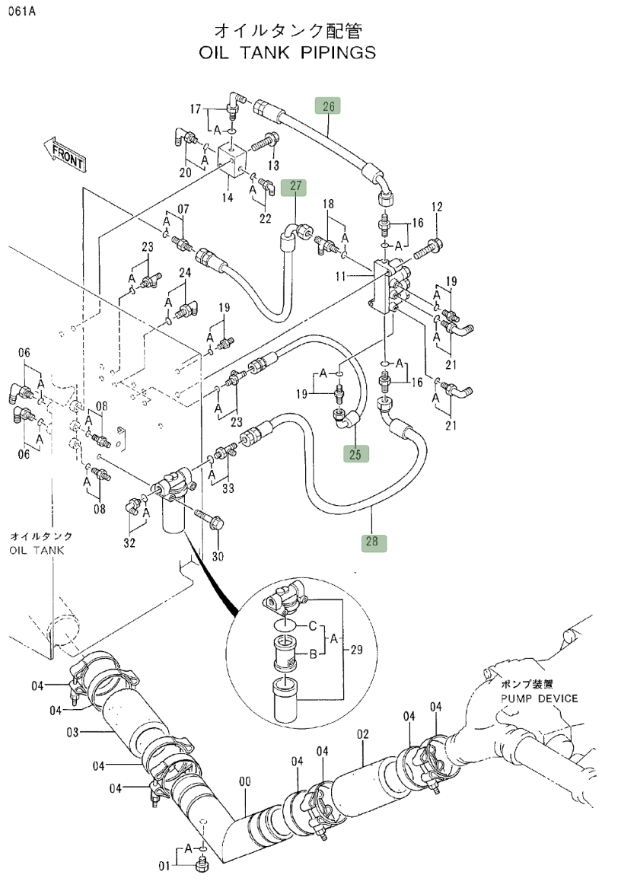

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4343383 before removing the hose.
Repair specifications
- Part number
- 4343383
- Diagram pipe number
- 25
- Installation route
- 液压油箱~电磁阀(液压油箱)
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 450 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
