Individual hose record

KBV17200 Hose Repair Specifications

Excavator · Case · CX240B · Boom Assembly

Finished length750 mm

Locate this hose

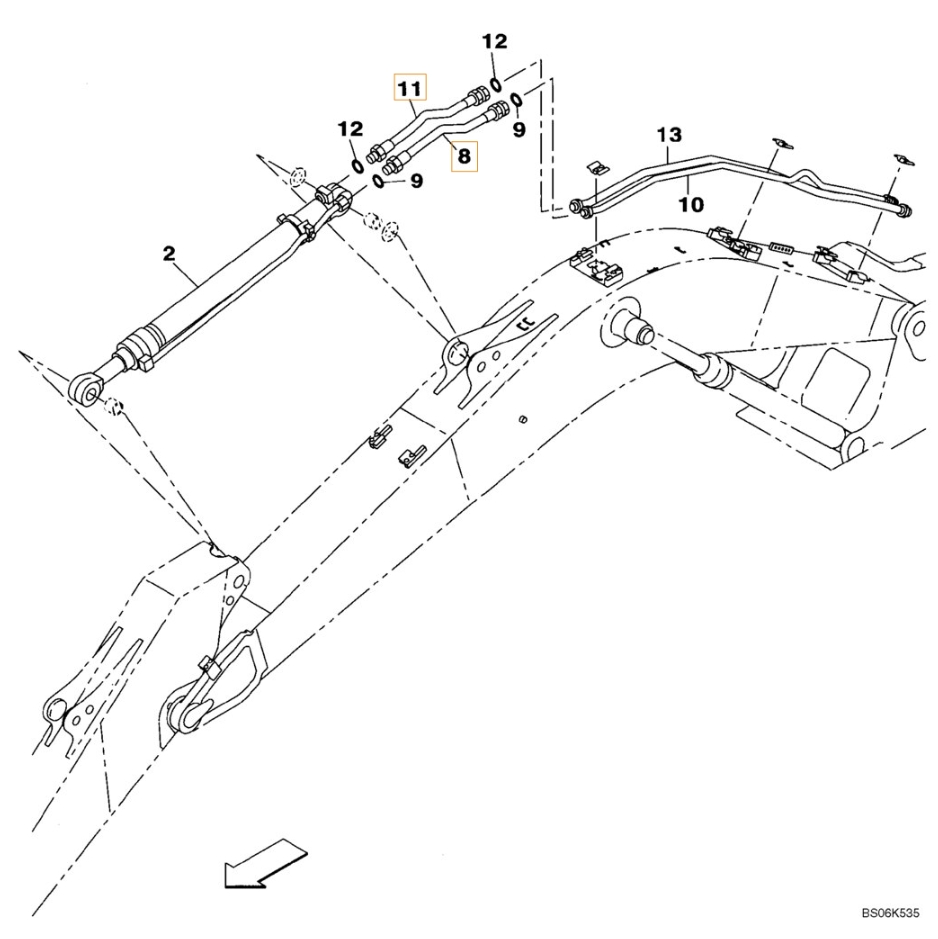

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KBV17200 before removing the hose.

Part number: KBV17200
Diagram pipe number: 11
Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 750 mm
Working pressure: 32.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 750 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封
