Individual hose record
730502001951 Hose Repair Specifications
Excavator · Sunward · SWE150E · Hydraulic Tank
Finished length950 mm
Locate this hose

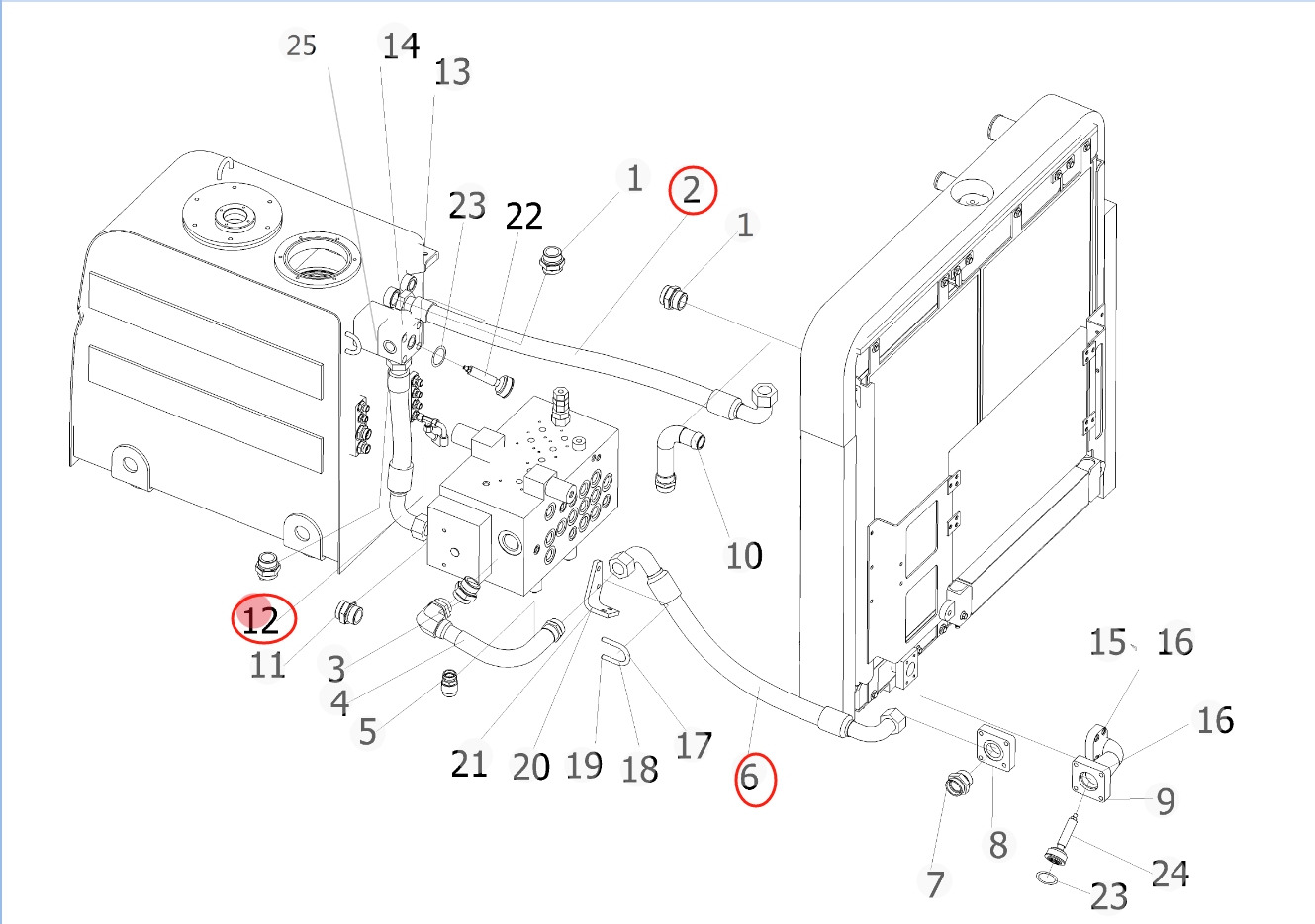

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 730502001951 before removing the hose.
Repair specifications
- Part number
- 730502001951
- Diagram pipe number
- 2
- Installation route
- 液压油箱~液压油散热器
- Hose specification
- DN32;1SN-20;6.3MPa
- Finished length
- 950 mm
- Working pressure
- 6.3 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
