Individual hose record

KHJ2194 Hose Repair Specifications

Excavator · Case · CX210E NLC · Solenoid Valve

Finished length650 mm

Locate this hose

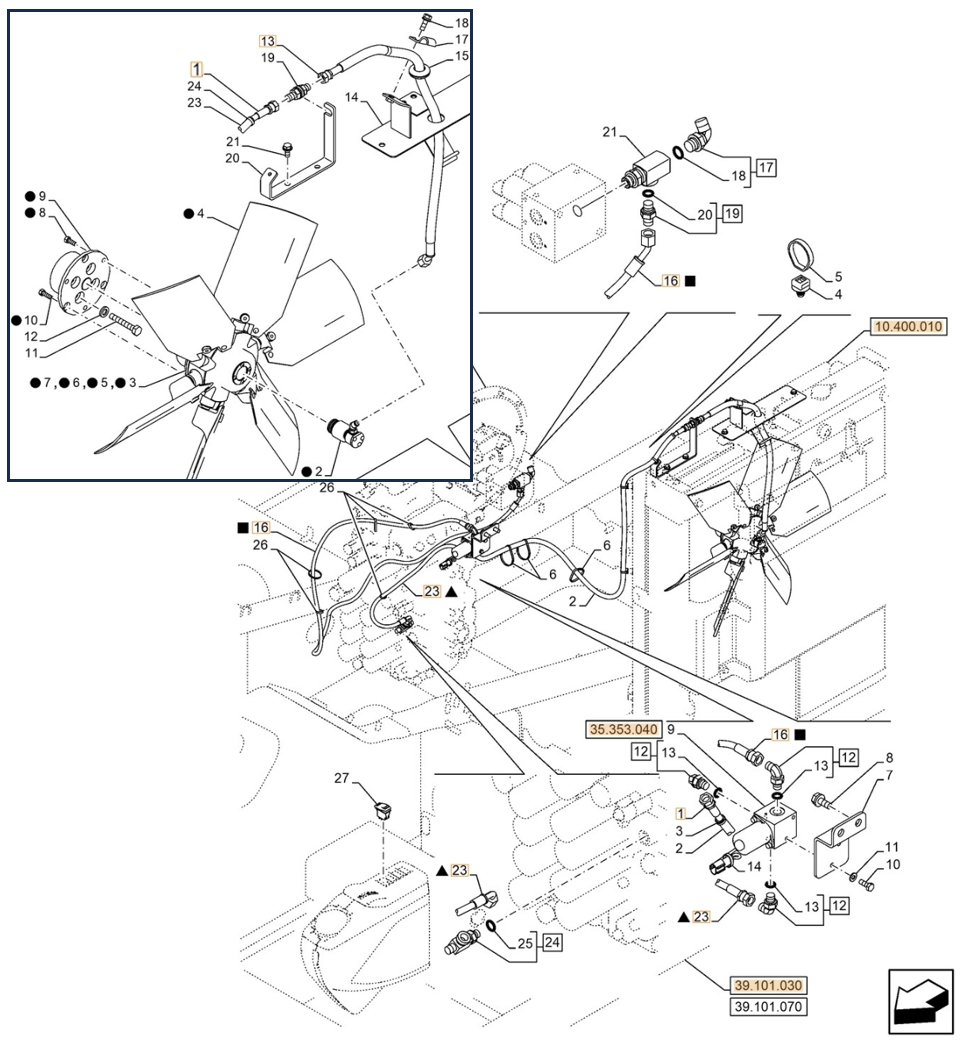

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number KHJ2194 before removing the hose.

Case CX210E NLC installation diagram showing hydraulic hose KHJ2194 at Pipe No. 23 — Case CX210E NLCPart KHJ2194 · Pipe No. 23Open full-size diagram

Repair specifications

Part number: KHJ2194
Diagram pipe number: 23
Installation route: 分配阀~散热器电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 650 mm
Working pressure: 22.5 MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥
Quantity: 1
