Individual hose record
4651787 Hose Repair Specifications
Excavator · Hitachi · ZX450LC-3 · Control Valve
Finished length420 mm
Locate this hose

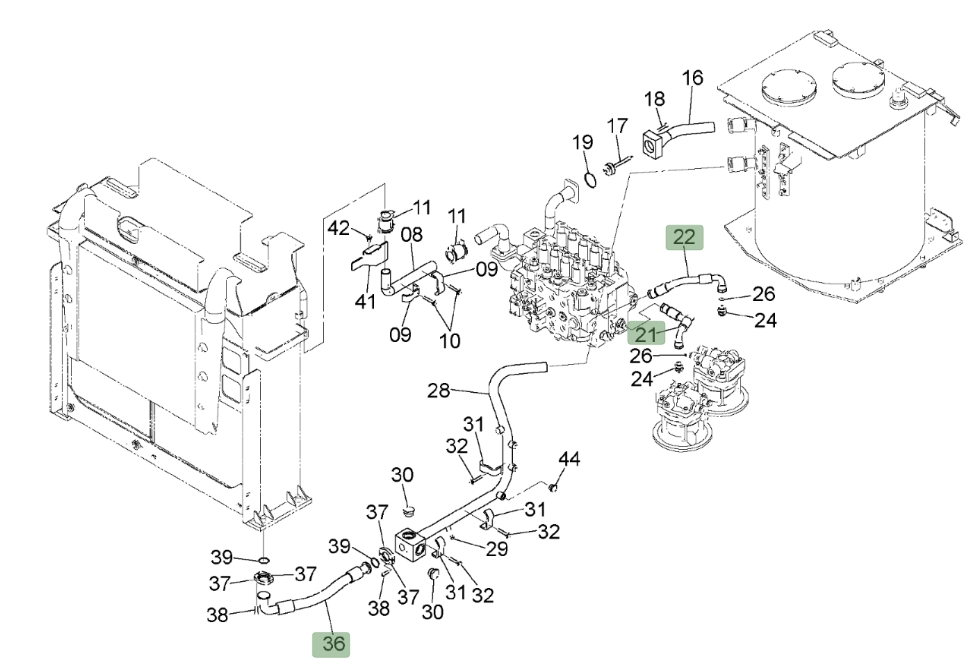

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 4651787 before removing the hose.
Repair specifications
- Part number
- 4651787
- Diagram pipe number
- 22
- Installation route
- 分配阀前~回转马达(左)
- Hose specification
- DN25;2SN-16;16.5MPa
- Finished length
- 420 mm
- Working pressure
- 16.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
