Individual hose record

730501008348 Hose Repair Specifications

Excavator · Sunward · SWE135E-3H · Boom Assembly

Finished length680 mm

Locate this hose

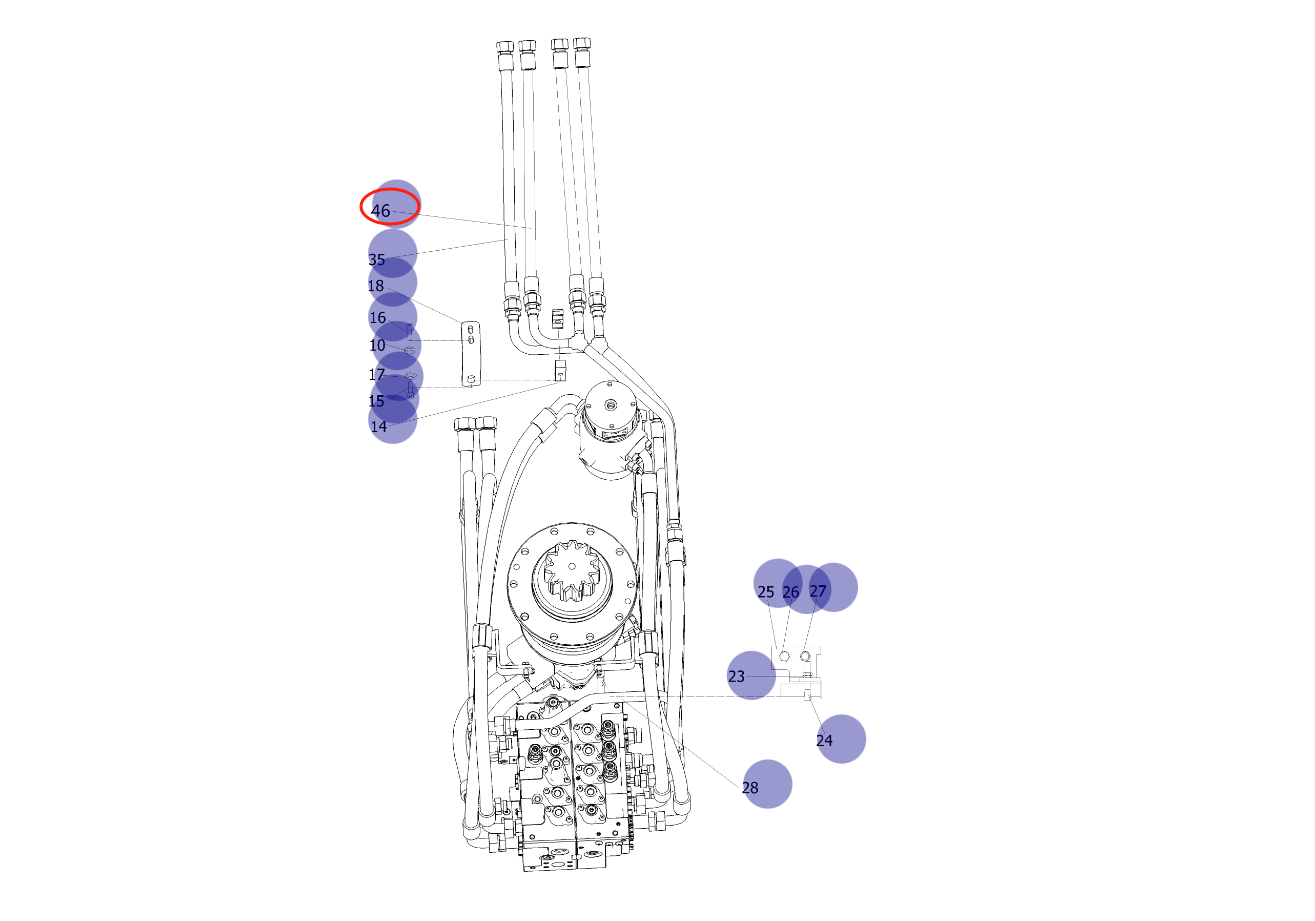

Installation diagram — Pipe No. 46

Locate Pipe No. 46 in the diagram, then confirm part number 730501008348 before removing the hose.

Sunward SWE135E-3H installation diagram showing hydraulic hose 730501008348 at Pipe No. 46 — Sunward SWE135E-3HPart 730501008348 · Pipe No. 46Open full-size diagram

Repair specifications

Part number: 730501008348
Diagram pipe number: 46
Installation route: 大臂右2~分配阀
Hose specification: DN16;6SH-10;42MPa
Finished length: 680 mm
Working pressure: 42 MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 35

730501005409

Installation route: 大臂右1~分配阀

Length: 690 mm
Specification: DN16;6SH-10;42MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 38

73050200C822

Installation route: 大臂~分配阀

Length: 645 mm
Specification: DN16;6SH-10;42MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 39

73050200C823

Installation route: 大臂~分配阀

Length: 655 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 10

730501005407

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 920 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 41

730504005757

Installation route: 大臂油缸~分配阀

Length: 1,060 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-重型
Right fitting: 45°法兰-轻型

View full repair specifications

Diagram Pipe No. 11

73050200C298

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 960 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 38

730502010200

Installation route: 大臂~分配阀

Length: 665 mm
Specification: DN16;6SH-10;42MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications
