Individual hose record

73050200C298 Hose Repair Specifications

Excavator · Sunward · SWE135E-3H · Boom Assembly

Finished length960 mm

Locate this hose

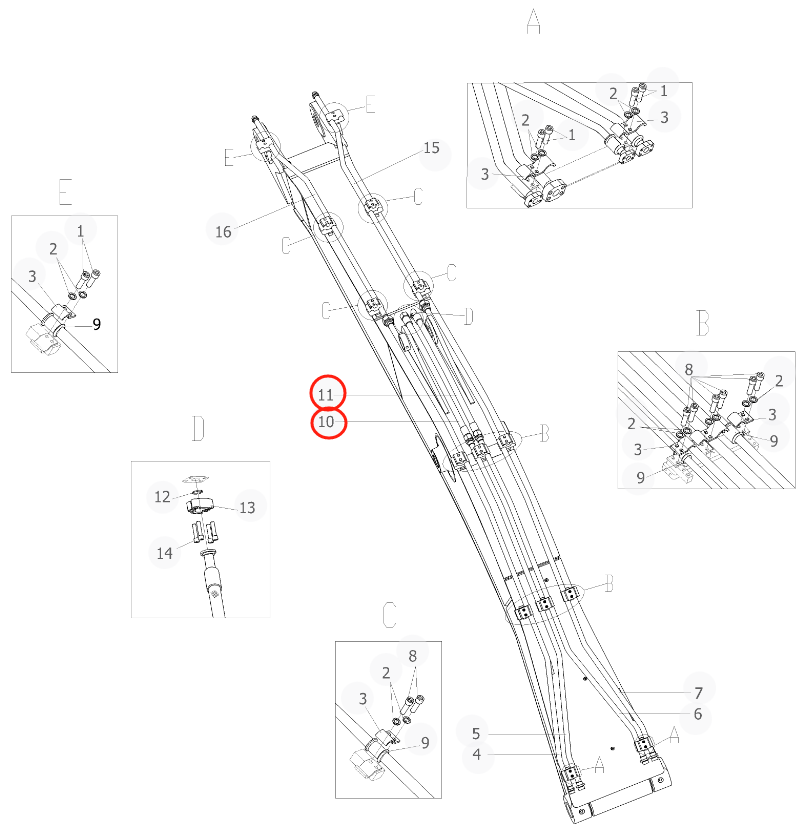

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 73050200C298 before removing the hose.

Sunward SWE135E-3H installation diagram showing hydraulic hose 73050200C298 at Pipe No. 11 — Sunward SWE135E-3HPart 73050200C298 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 73050200C298
Diagram pipe number: 11
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN20;6SH-12;35MPa
Finished length: 960 mm
Working pressure: 35 MPa
Left fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型
Quantity: 1
